Specifications

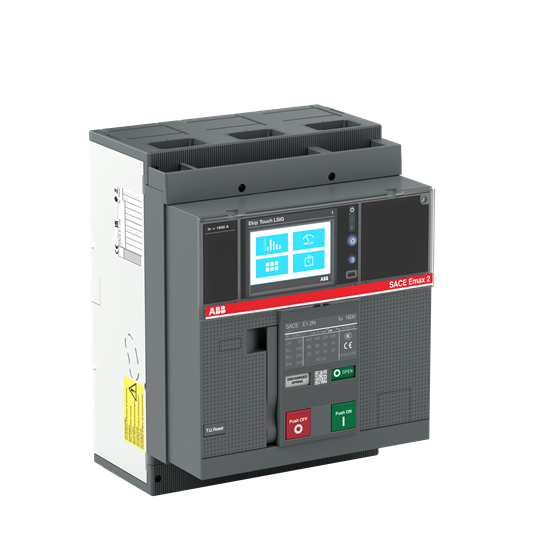

Product Type	Air Circuit Breaker
Brand	ABB
Breaking Capacity	50 kA
Component Type	Fixed
Connection Type	Front
Degree of Protection	IP30
Depth	183 mm
Height	296 mm
Number of Poles	3
Power Loss	31 W
Rated Current	250 A
Rated Impulse Withstand Voltage	12 kV
Rated Insulation Voltage	1000 V
Rated Voltage	690 VAC
Release Type	EL
Standards and Approvals	IEC 309
Terminal Type	Front
Trip Unit	Ekip Touch LSIG
Version	Fixed
Weight	14 kg
Width	210 mm
