Specifications

Rated Short Circuit Breaking Capacity, (Ics) 690V AC	66k A
Rated Short Circuit Breaking Capacity, (Icu) 690V AC	66 kA
Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz	66 kA
Product Type	Fixed

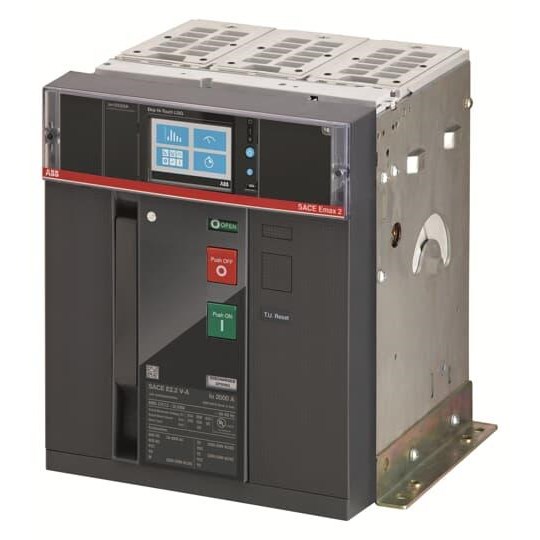

Brand	ABB
Series	SACE Emax 2
Max. Rated Operation AC Voltage (Ue)	600 V AC
No. of Poles (Total)	3
Rated Current (In)	1600 A
Rated Insulation Voltage (Ui)	1000 V
Frame Size Rating	E2.2
Rated Frequency	5060 Hz
Mechanical Endurance	25000 cycles
Depth	270 mm
Height	371 mm
Weight	45 kg
Width	276 mm
