Specifications

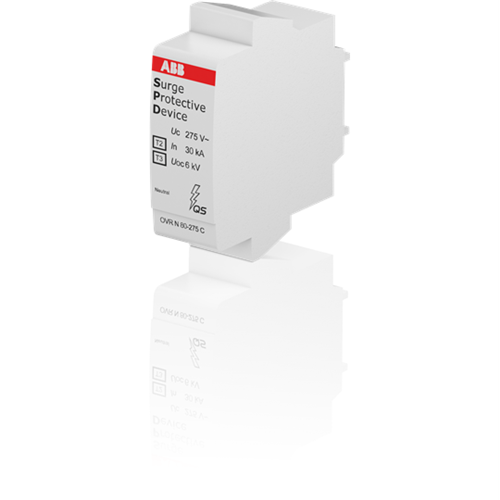

Product Type	Surge Protective Device
Brand	ABB
Connection Type	Plug-In
Degree of Protection	IP20
Depth	55.6 mm
Height	57 mm
Lightning Impulse Current	6.25 kA
Mounting Type	DIN Rail
Number of Conductors	1
Power Loss	1 mW
Rated Current	80 kA
Rated Short Circuit Current	100 kA
Rated Voltage	230 VAC
Suitable For Use With	Protect The Systems Against The Transient Overvoltage (Lightning)
Version	Plug-in
Voltage Protection Level	1.4 kV
Weight	0.12 kg
Width	17.6 mm
