Specifications

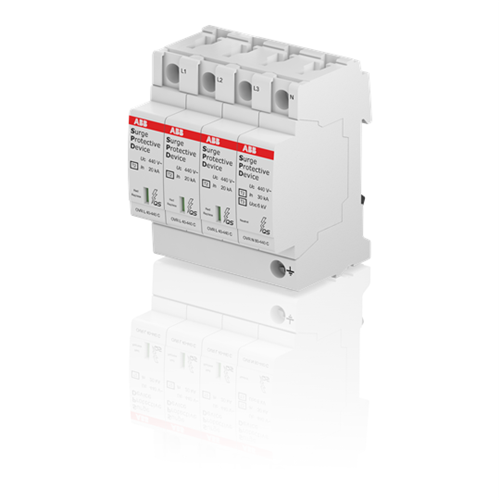

Product Type	Surge Protective Device
Brand	ABB
Connection Type	Plug-In
Lightning Impulse Current Iimp (10/350µs)	2 kA
Suitable for	Protect The Systems Against The Transient Overvoltage (Lightning)
Power Loss	156 mW
Rated Current	40 kA
Rated Short Circuit Current	100 kA
Rated Voltage	400 VAC
Type	Plug-in
Voltage Protection Level Up	2.1 kV
Mounting Type	DIN Rail
Depth	58 mm
Height	88 mm
Weight	0.48 kg
Width	71.2 mm
IP Rating	IP20
