Specifications

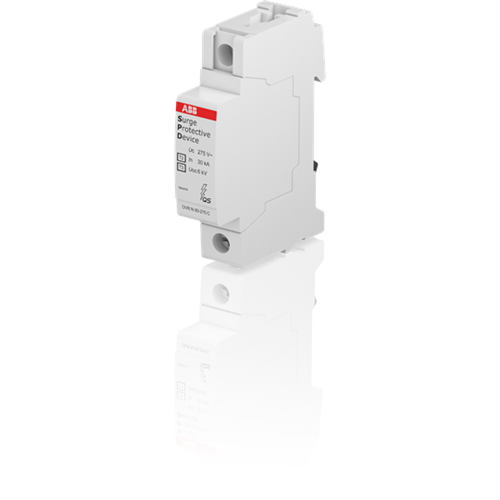

Product Type	Surge Protective Device
Brand	ABB
Connection Type	Plug-In
Lightning Impulse Current Iimp (10/350µs)	6.25 kA
Suitable for	Protect The Systems Against The Transient Overvoltage (Lightning)
Rated Current	80 kA
Rated Short Circuit Current	100 kA
Rated Voltage	400 VAC
Type	Plug-in
Voltage Protection Level Up	1.4 kV
Mounting Type	DIN Rail
Depth	58 mm
Height	88 mm
Weight	0.12 kg
Width	17.8 mm
IP Rating	IP20
