Specifications

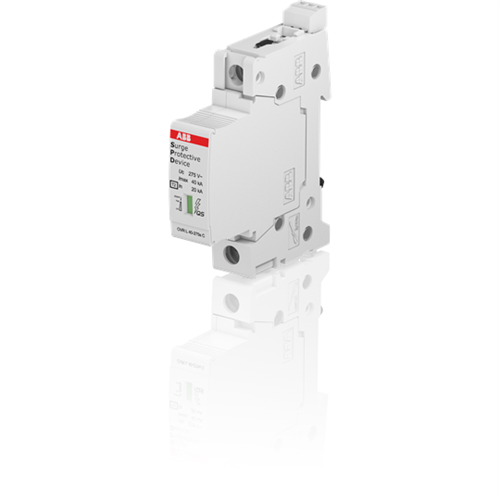

Product Type	Surge Protective Device
Brand	ABB
Connection Type	Plug-In
Degree of Protection	IP20
Depth	76.7 mm
Height	95.8 mm
Lightning Impulse Current	2 kA
Mounting Type	DIN Rail
Number of Conductors	1
Number of Poles	1
Power Loss	28 mW
Rated Current	40 kA
Rated Short Circuit Current	100 kA
Rated Voltage	230 VAC
Suitable For Use With	Protect The Systems Against The Transient Overvoltage (Lightning)
Version	Plug-in
Voltage Protection Level	1.4 kV
Weight	0.15 kg
Width	17.8 mm
