Specifications

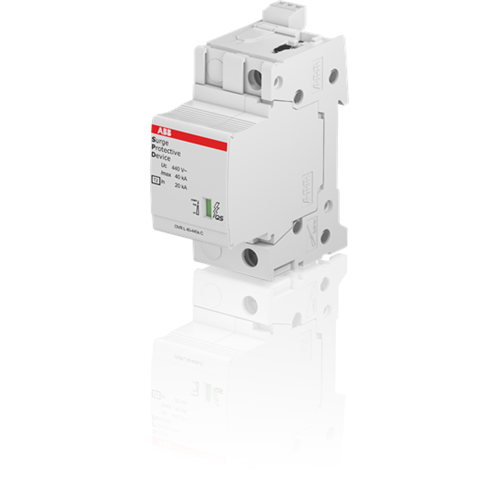

Product Type	Surge Protective Device
Brand	ABB
Connection Type	Plug-In
Degree of Protection	IP20
Depth	76.7 mm
Height	95.8 mm
Lightning Impulse Current	2 kA
Mounting Type	DIN Rail
Number of Conductors	1
Number of Poles	1
Rated Current	40 kA
Rated Short Circuit Current	100 kA
Rated Voltage	400 VAC
Suitable For Use With	Protect The Systems Against The Transient Overvoltage (Lightning)
Version	Plug-in
Voltage Protection Level	1.8 kV
Weight	0.15 kg
Width	17.8 mm
