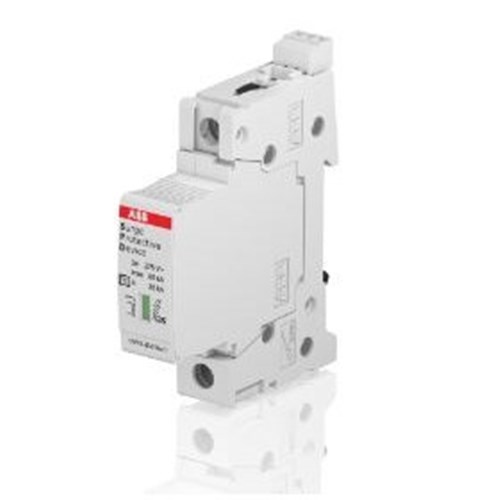

Specifications

Product Type	QS
Brand	ABB
Application	To protect the systems against the transient overvoltage (lightning)
Connection Type	Plug-In
Lightning Impulse Current Iimp (10/350µs)	6.25 kA
Max. Continuous Operating Voltage (AC/DC)	275 V
Suitable For	Protect The Systems Against The Transient Overvoltage (Lightning)
Power Loss	28 mW
Rated Current	80 kA
Rated Short Circuit Current	100 kA
Rated Voltage	230 VAC
Nominal Voltage	230 V AC, 400 V AC
Voltage Protection Level Up	1.4 kV
Max. Discharge Current Imax (8/20µs)	80 kA
Short Circuit Current Rating	100 kA
Alarm Contact	1 NO, 1 NC
Nominal Discharge Current Inom (8/20µs)	20 kA
No. of Poles	1
Mounting Method	DIN-Rail
Mounting Type	DIN Rail
Terminal Size	35 mm2
Depth	76.7 mm
Height	95.8 mm
Weight	0.15 kg
Width	17.8 mm
No. of Modules Width	1
IP Rating	IP20
