Specifications

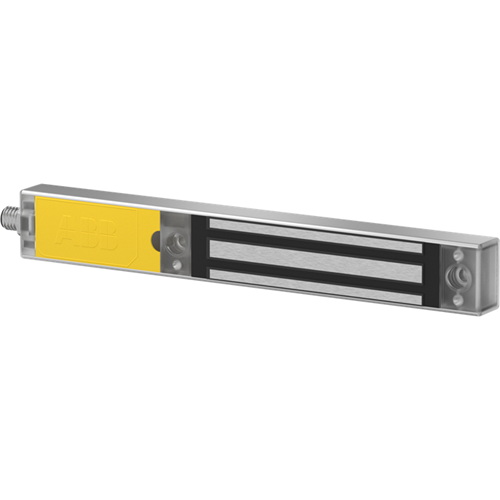

Product Type	Electromagnetic process lock
Brand	ABB
Series	Magne
Connection Type	M12 x 8 mm Male
Rated Voltage	24 V DC
Terminal Type	M12 8-pole male connector
Connector Type	M12-8 Male
Actuator Type	Eva
Guard Locking Force	Up to 1500 N
Housing Material	Anodized aluminum and polycarbonate
Mounting Type	Surface Mount
Depth	30 mm
Height	274 mm
Length	30 mm
Weight	700 g
Width	35 mm
Operating Temperature	-20 to 50 degC
IP Rating	IP67
Performance Level	Level e - According to EN ISO 13849-1
Standards and Approvals	CE TUV SUd cULus
