Specifications

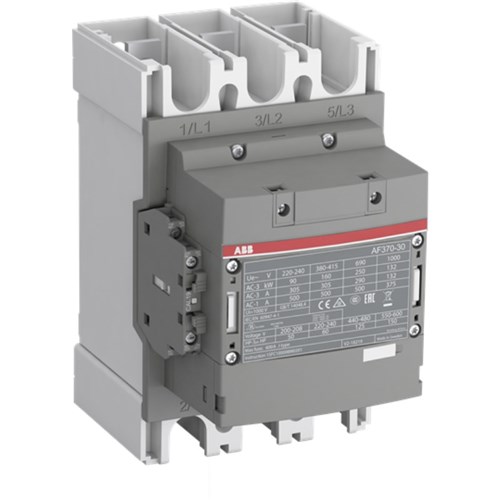

Product Type	Contactor
Brand	ABB
Rated Control Supply Voltage (Us)	24-60 V AC / 20-60 V DC
Rated Operational Current AC-1 <= 690V (Ie)	(690 V) 40 °C 600 A
Rated Operational Current AC-3 1000V (Ie)	(1000 V) 55 °C 141 A
Rated Operational Current AC-3 400V (Ie)	(415 V) 55 °C 370 A
Rated Operational Current AC-3 690V (Ie)	(690 V) 55 °C 315 A
Rated Operational Power AC-3 1000V (Pe)	(1000 V) 200 kW
Rated Operational Power AC-3 400V (Pe)	(415 V) 200 kW
Rated Operational Power AC-3 690V (Pe)	(690 V) 315 kW
Rated Frequency	50/60 Hz
No. of Auxiliary Contacts (NO/NC)	2 NO + 2 NC
Operating Temperature	-25 to 50 °C (Fitted with Thermal O/L Relay)
Standards and Approvals	IEC/EN 60947-1, IEC/EN 60947-4-1
