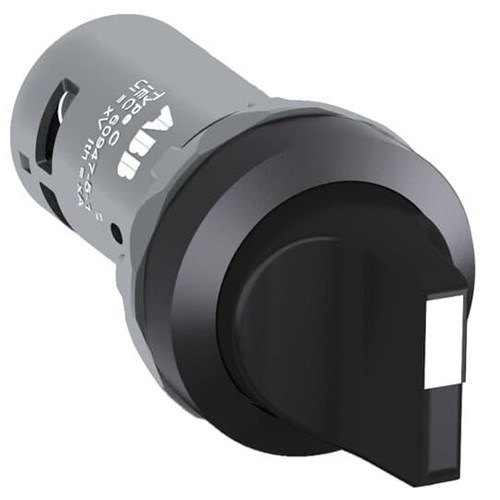

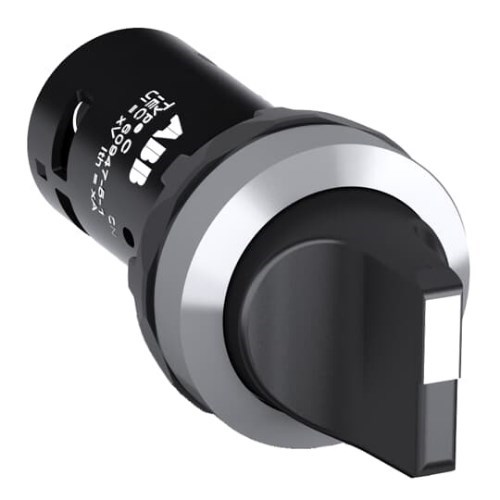

<p>When selecting a reliable and efficient selector switch for your industrial or commercial application, this model stands out as a robust choice. Designed for versatility, it operates within a wide rated voltage range of 24-300 V and accommodates both AC and DC systems with operational voltages up to 300 VAC/VDC. </p><p>This non-illuminated selector switch features a short handle actuator that simplifies user interaction while maintaining high performance in demanding environments. With contact configuration of 2NO (two normally open contacts), it provides straightforward integration into various control circuits.</p><p>Built to endure rigorous conditions, the switch boasts an impressive mechanical life of 0.5 million operations, ensuring long-term reliability and reducing maintenance needs. It supports momentary functions with maintained positions C and B, offering flexibility in operation.</p><p>The unit is encased in a durable plastic bezel, measuring 30 mm by 30 mm by 72 mm (W x H x D), making it compact enough to fit into tight spaces without compromising on functionality. Its screw terminal type allows secure connections with a tightening torque of 0.8 N-m.</p><p>In terms of protection, the selector switch holds an IP20 rating for basic protection against solid objects larger than 12mm and IP65 for dust-tight sealing and water resistance from low-pressure jets from any direction—ideal for harsh industrial settings. Furthermore, its NEMA ratings include classifications such as NEMA 1, 12, 13 for general purpose indoor use; NEMA 3 and 3R for outdoor protection against rain; plus NEMA 4 and the corrosion-resistant variant NEMA 4X.</p><p>The product is engineered to withstand temperature extremes during storage from -40 to +85 degrees Celsius without losing integrity or performance capability—a testament to its rugged design.</p><p>Rated insulation voltage at an impressive level of up to 300 V ensures safety under normal operating conditions while the rated impulse withstand voltage reaches up to a substantial level of six kilovolts (6 kV). This makes it suitable even in applications where transient overvoltages are expected.</p><p>With rated operational currents varying between options like: </p><p>- **0.2 A**</p><p>- **0.3 A**</p><p>- **1 A**</p><p>This selector switch proves adaptable across different load requirements within its specified parameters—catering effectively whether you need lighter loads or higher current demands depending on specific system needs at hand.</p>
