Specifications

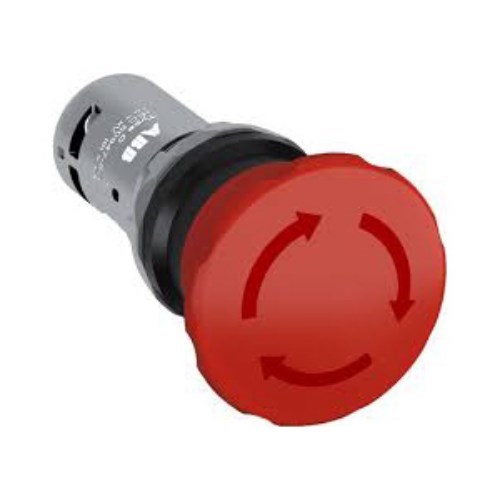

Product Type	Compact Non-Illuminated Emergency Stop Pushbutton
Brand	ABB
Actuator Type	Mushroom 40mm
Colour	Red
Connecting Capacity	Flexible with Ferrule 1/2 x 0.5 - 1.5 mm² Flexible with Insulated Ferrule 1/2 x 0.5 - 1.5mm² Flexible 1/2 x 0.5 - 1.5mm² Solid 1/2 x 0.5 - 1.5mm²
Connection Type	Screw Clamp
Degree of Protection	Front: IP66, IP67, IP69K; Terminals: IP20
Function	Maintained
Length	100 mm
Material	Stainless Steel Tube and Bracket
Operational Temperature	-25 to 50 deg C
Terminal Type	Screw
