Specifications

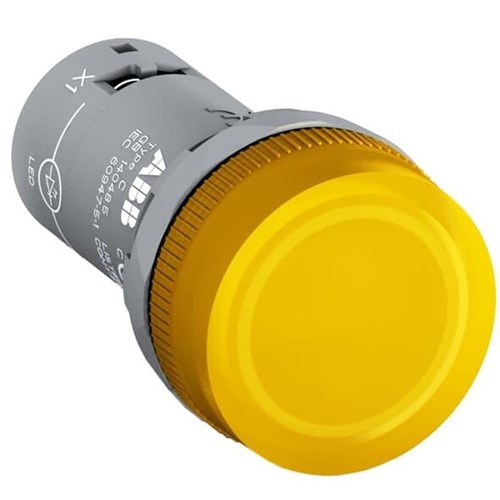

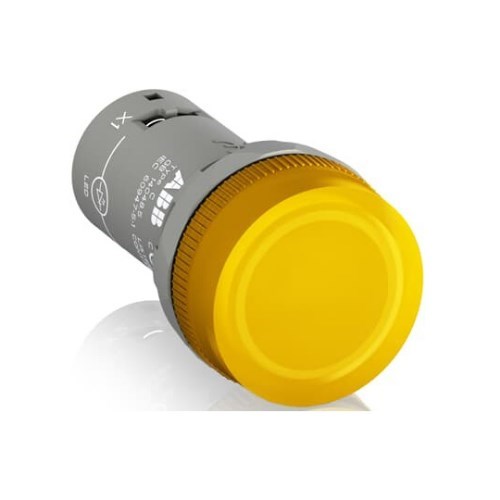

Product Type	Compact Pilot Light With Intergrated LED
Brand	ABB
Series	LD6A
Colour	Red, Yellow, Green
Degree of Pollution	IP3
Degree of Protection	IP23, IP54, IP65
Housing Colour	Light Grey
Housing Material	ABS
Humidity	45-85%
Insulation Resistance	100 MOhm
Lamp Type	Not included
LED Colour	Yellow
Model	Integrated LED
Mounting Type	Wall
Number of Tiers	3
Operational Temperature	-25 to 55 deg C
Rated Insulation Voltage	60 V
Rated Voltage	24 VAC/VDC
Shock Resistance	147 ms
Standards and Approvals	CE, cRUus, CSA C22.2 #14, EN60947-5-1, IEC60947-5-1, UL508
Terminal Type	Screw Terminals
Vibration Resistance	10-55 Hz
Weight	305 g
