Specifications

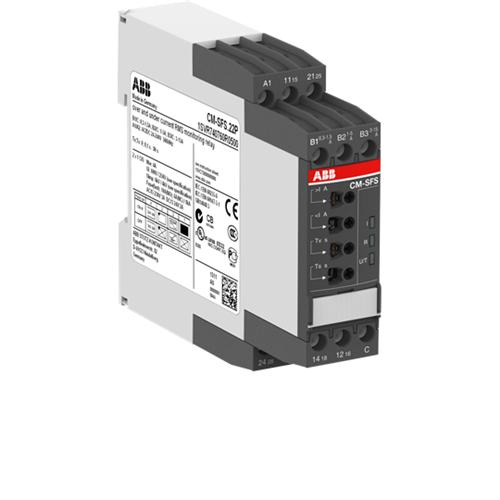

Product Type	Current Monitoring Relay
Brand	ABB
Contact Configuration	(2) 1CO or (1) 2CO
Contact Form	(2) 1CO or (1) 2CO
Degree of Pollution	IP3
Degree of Protection	IP20, IP50
Electrical Durability	100000 Operations
Function	Over And Undercurrent Monitoring
Height	85.6 mm
LED Colour	U/T: Green, I: Red, R: Yellow
Measuring Range	3-30 mA, 10-100 mA, 0.1-1 A
Mechanical Durability	30000000 Operations
Mounting Type	35 x 15 mm DIN Rail, 35 x 7.5 mm DIN Rail
Operating Time	0.1-30 s
Operational Temperature	-20 to 60 deg C
Output Type	(2) 1CO, (1) 2CO
Overvoltage Category	III
Rated Current	4 A
Rated Voltage	24-240 VAC/VDC
Standards and Approvals	CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 60255-27, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508
Terminal Type	Screw
Weight	0.15 kg
Width	22.5 mm
