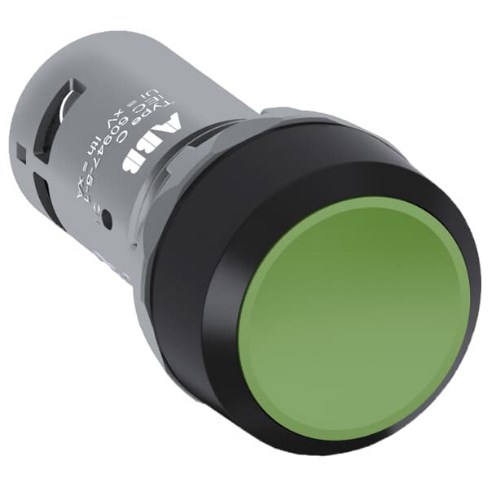

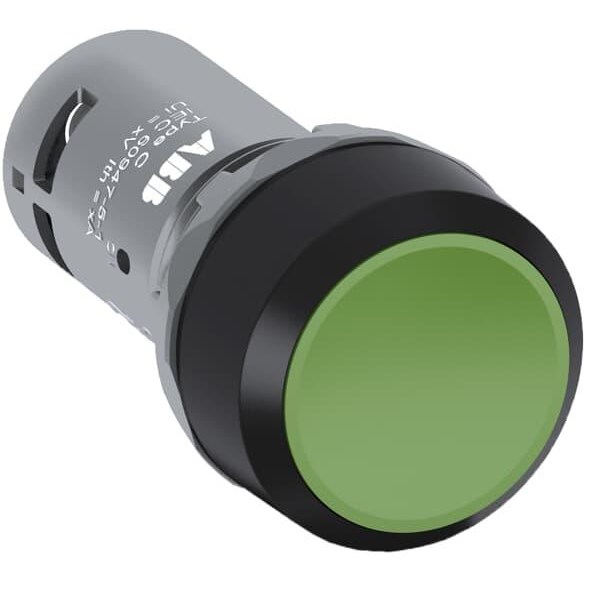

<p>The CP Series Pushbutton is a robust industrial component designed for reliable performance in demanding environments. This non-illuminated pushbutton features a flush actuator, ensuring a sleek and unobtrusive profile suitable for various applications. With dimensions of 30 mm width, 30 mm height, and a depth of 55 mm, it offers compact versatility without sacrificing functionality.</p><p>Engineered to withstand harsh conditions, this pushbutton operates effectively within an operational temperature range from -25 to 70 degrees Celsius. Its storage temperature capability extends further from -40 to 85 degrees Celsius, making it adaptable for diverse settings. The product&#39;s degree of protection stands at IP66, IP67, and IP69K at the front and IP20 at the terminal end—ideal for environments requiring high resistance against dust and water ingress.</p><p>The electrical specifications are equally impressive. It boasts a rated insulation voltage of 300 V with a rated impulse withstand voltage of 6 kV. The contact configuration is 2NO (two normally open contacts), supporting momentary function operations with ease. Additionally, it supports a rated thermal current of up to 5 A.</p><p>Installation is straightforward thanks to its screw terminal type connection that accommodates flexible wires with ferrules or insulated ferrules ranging from 0.5 to 1.5 square millimeters in capacity as well as solid wires in the same range. The wire stripping length required is just 6 mm.</p><p>For standards compliance and safety assurances, this pushbutton meets several international standards including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 among others—ensuring peace of mind regarding quality and reliability.</p><p>Weighing only about 0.022 kg with an easy-to-grip green button color set against its black plastic bezel material enhances both aesthetics and functionality while maintaining durability over time.</p><p>Moreover this unit fits well into enclosures classified under NEMA types: NEMA Type1 (general-purpose), Type12 (industrial use), Type13 (oil-tight/dust-tight), Type3R (outdoor weather-resistant), Type4/4X which provide additional corrosion resistance properties when needed most especially in outdoor or washdown applications where stainless steel might be preferred but costly compared alternatives like plastic bezels which still offer great protection levels particularly when combined proper sealing techniques during assembly processes thus extending lifespan significantly even beyond expectations sometimes depending usage scenarios encountered daily basis by operators using them regularly across different industries worldwide today!</p>
