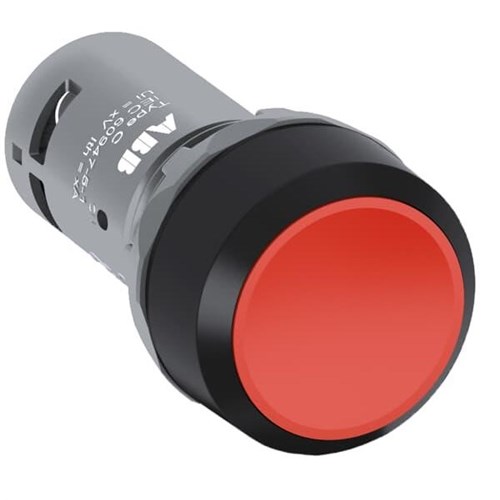

<p>When selecting industrial components, the right choice hinges on understanding the technical specifications and performance capabilities. This push button switch from the CP Series is designed for rigorous environments and offers reliable functionality across a range of applications.</p><p>**Technical Specifications**</p><p>This non-illuminated push button switch operates effectively within a rated frequency of 50/60 Hz. With dimensions measuring 30 mm in width, 30 mm in height, and a depth of 55 mm, it’s compact yet robust enough for various installation needs. The unit is lightweight at just 0.018 kg, making it easy to handle during setup.</p><p>**Environmental Resilience**</p><p>Designed to withstand tough conditions, this switch functions optimally between temperatures of -25 to 70 degrees Celsius and can be stored safely between -40 to 85 degrees Celsius. Its high degree of protection includes IP66, IP67, and IP69K ratings on the front side, ensuring resistance against dust and powerful water jets—ideal for demanding industrial environments. The terminal side holds an IP20 rating.</p><p>**Connection Details**</p><p>The product features screw terminals capable of accommodating flexible wires with ferrules or solid wires ranging from 0.5 to 1.5 sq-mm in size. A wire stripping length of 6 mm is recommended for secure connections with a tightening torque specification set at 1 N-m.</p><p>**Electrical Characteristics**</p><p>With a rated insulation voltage of up to 300 V and an impulse withstand voltage capacity rated at 6 kV, this switch ensures safe operation under electrical surges or spikes. It supports a contact configuration of two normally open (2NO) contacts with a momentary function type that resets upon release.</p><p>**Standards Compliance**</p><p>Meeting several key industry standards such as EN IEC 60947-1 and EN IEC 60529 among others ensures compliance with safety regulations which are crucial for operational dependability.</p><p>**Design Features**</p><p>The actuator is flush type with an eye-catching red button color contrasted by its black plastic bezel material—an aesthetic choice that also serves practical purposes by enhancing visibility in various settings.</p><p>**Enclosure Versatility**</p><p>This switch is compatible with multiple enclosure types including NEMA ratings: Type 1 for general indoor use; Type 12 and Type13 suited for industrial environments where dust or oil might be present; Types3R through4X offer outdoor resilience against moisture intrusion while maintaining corrosion resistance—a versatile option across different setups requiring stringent environmental protections.</p><p>In summary this CP Series push button switch combines durability versatility compliance adherence alongside user-friendly design elements tailored towards meeting diverse technical requirements without compromising on quality or safety standards.</p>
