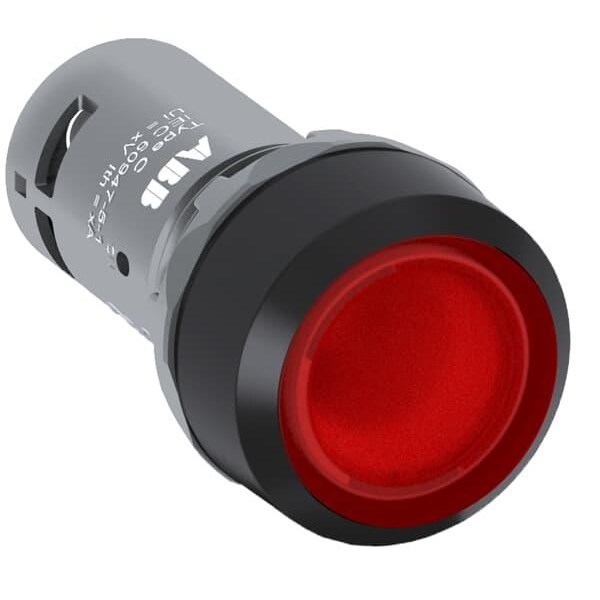

<p>The CP series illuminated pushbutton is a robust and reliable component designed for industrial and commercial applications, offering versatility with its 230 VAC/DC rated voltage. Operating efficiently at both 50 and 60 Hz frequencies, this device ensures seamless integration into various electrical systems. Its compact dimensions of 30 mm width, 30 mm height, and 55 mm depth allow for easy installation in space-constrained environments.</p><p>Engineered to withstand harsh conditions, the pushbutton operates effectively within an extensive temperature range from -25&#176;C to 70&#176;C. It features a durable screw terminal type with a tightening torque of 1 N-m, ensuring secure connections. The degree of protection is impressive with IP66, IP67, and IP69K ratings on the front side and an IP20 rating for terminals, safeguarding against dust ingress and high-pressure water jets.</p><p>Compliant with EN IEC standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 among others, this product meets rigorous safety and performance benchmarks. Weighing just 0.025 kg makes it lightweight yet sturdy enough for demanding tasks.</p><p>The pushbutton&#39;s connection type is screw-based which supports flexible or solid wires ranging from 0.5 to 1.5 sq-mm in size. A wire stripping length of only 6 mm adds convenience during installations.</p><p>Designed with practicality in mind, it has a mechanical life expectancy of half a million operations—ensuring longevity even under frequent use scenarios. The contact configuration is normally open (1NO), suitable for momentary functions where temporary activation is required.</p><p>Rated insulation voltage stands at an impressive level of up to 300 V while the rated impulse withstand voltage reaches up to an exceptional value of six kilovolts (6 kV). This provides substantial resilience against electrical surges or spikes that may occur within industrial settings.</p><p>For visibility purposes especially crucial during emergencies or low-light conditions; this model incorporates red LED illumination housed behind plastic bezel material enhancing durability without compromising aesthetics nor functionality aspects whatsoever! The actuator type being flush contributes towards maintaining streamlined appearances across control panels too!</p><p>In terms of enclosure types supported: NEMA classifications include categories like number one twelve thirteen three R four &amp; four X thus confirming compatibility across multiple environmental scenarios whether indoors outdoors exposed elements etcetera!</p><p>Overall if you need dependable solution capable meeting diverse technical requirements then look no further than our esteemed CP Series Push Button – truly epitomizing quality reliability ease-of-use all rolled into single package!</p>
