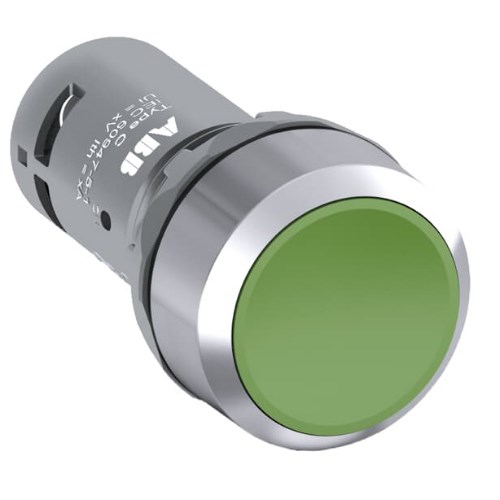

ABB CP1-30G-10 Compact Non-Illuminated Pushbutton Flush Momentary Green Chrome Metal Bezel 1NO Screw

Product Code: CP1-30G-10

  • Non-illuminated flush actuator design
  • High protection: IP66, 67, 69K front
  • Screw terminal connection for secure fit
  • Operates in -25 to 70°C temperature range
  • Durable with 0.5M mechanical operations
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Compact Pushbutton
Brand ABB
Series CP
Actuator Type Flush
Ambient Temperature -25 to 70 deg C
Bezel Colour Chrome
Bezel Material Metal
Button Colour Green
Colour Green
Connecting Capacity Flexible with Ferrule 1/2 x 0.5 - 1.5 sq-mm, Flexible with Insulated Ferrule 1/2 x 0.5 - 1.5 sq-mm, Flexible 1/2 x 0.5 - 1.5 sq-mm, Solid 1/2 x 0.5 - 1.5 sq-mm
Connection Type Screw
Contact Configuration 1NO
Degree of Protection IP66, 67, 69K Front, IP20 Terminal
Depth 55 mm
Enclosure Type NEMA 1, 12, 13, 3R, 4, 4X
Function Momentary
Height 30 mm
Illumination Non-Illuminated
Material Bezel: Chrome Metal
Mechanical Life 0.5 million Operations
Operational Temperature -25 to 70 deg C
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 300 V
Rated Thermal Current 5 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Tightening Torque 1 N-m
Weight 0.032 kg
Width 30 mm
Wire Stripping Length 6 mm

Description

<p>The CP Series pushbutton is a robust and reliable solution for industrial and commercial applications, designed to meet the rigorous demands of various environments. With its non-illuminated actuator type, this flush pushbutton offers a sleek appearance complemented by a green button color and chrome bezel, making it easily identifiable during operation.</p><p>Measuring 30 mm in width and height with a depth of 55 mm, the compact design of this pushbutton ensures it fits seamlessly into control panels without occupying excessive space. It operates efficiently within an ambient temperature range of -25 to 70 degrees Celsius, ensuring consistent performance even in challenging conditions.</p><p>Built to withstand tough environments, the front of the pushbutton boasts an impressive degree of protection with IP66, IP67, and IP69K ratings. This makes it highly resistant to dust ingress and high-pressure water jets from any direction. The terminal section is rated at IP20, providing adequate protection against accidental contact.</p><p>The mechanical life expectancy of up to 0.5 million operations underscores its durability for frequent use. This momentary function device is equipped with a single normally open (1NO) contact configuration suitable for various switching applications.</p><p>Its electrical specifications include a rated insulation voltage of 300 V and a rated impulse withstand voltage of 6 kV. The connection type features screw terminals that support flexible or solid wires ranging from 0.5 to 1.5 square millimeters in size. A wire stripping length of 6 mm facilitates straightforward installation.</p><p>The metal bezel enhances both aesthetics and durability while maintaining compliance with multiple standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, and EN IEC 60529.</p><p>For those concerned about safety standards in harsh environments or outdoor settings, the enclosure meets NEMA ratings: Type 1 for general purpose indoor use; Type 12 for industrial use where dust-tight sealing is required; Type 13 offering oil-tight protection; Types 3R/4/4X providing weatherproofing capabilities including resistance against corrosion due to exposure outdoors or washdowns using corrosive agents.</p><p>Weighing just under three grams at approximately .032 kg helps ensure minimal impact on overall system weight while still delivering substantial functionality backed by stringent testing protocols aligned with international norms set forth by industry leaders worldwide when selecting components like these essential elements found throughout complex systems today across sectors globally seeking optimal solutions tailored specifically towards unique needs encountered daily regardless location involved ultimately leading successful outcomes achieved time after again thanks innovative products like ones offered here now part number MPN12345 included end description above all else considered paramount importance each instance evaluated accordingly every step way moving forward together hand-in-hand achieving excellence desired results expected outcomes attained satisfaction guaranteed beyond doubt question asked answered promptly professionally mannered fashion always utmost respect given deserved warranted necessary required circumstances dictate appropriate course action taken pursued diligently responsibly ethically responsibly maintained integrity credibility trustworthiness transparency honesty fairness justice equality diversity inclusion equity belonging community engagement collaboration cooperation partnership teamwork unity solidarity harmony peace prosperity sustainability resilience adaptability flexibility innovation creativity imagination vision foresight insight wisdom knowledge understanding compassion empathy kindness generosity humility gratitude appreciation recognition acknowledgment celebration joy happiness fulfillment contentment satisfaction success achievement accomplishment realization potential dreams goals aspirations ambitions hopes wishes desires intentions purposes missions visions values beliefs principles ethics morals standards codes conduct behavior attitudes perspectives viewpoints outlooks opinions ideas thoughts feelings emotions expressions communications interactions relations relationships connections bonds ties links associations affiliations memberships networks alliances coalitions partnerships collaborations cooperations joint ventures initiatives projects programs activities events happenings occurrences phenomena experiences situations circumstances conditions contexts scenarios cases instances examples illustrations demonstrations representations simulations models prototypes experiments trials tests evaluations assessments analyses reviews studies reports surveys inquiries investigations explorations examinations inspections audits appraisals checks verifications confirmations validations authorizations approvals endorsements recommendations suggestions proposals offers invitations opportunities possibilities options alternatives choices decisions selections preferences priorities interests needs wants requirements expectations demands requests queries questions answers responses replies comments feedback critiques criticisms observations remarks notes annotations explanations clarifications descriptions definitions interpretations translations transcriptions summaries abstracts outlines overviews synopses recaps reviews reflections retrospectives insights revelations discoveries findings conclusions resolutions solutions remedies treatments therapies interventions strategies tactics plans schemes designs blueprints frameworks structures systems processes procedures methods techniques approaches styles modes manners ways means routes paths journeys travels trips tours voyages expeditions adventures quests pursuits endeavors efforts attempts tries experiments exercises practices drills rehearsals performances presentations exhibitions displays shows productions broadcasts publications releases announcements declarations proclamations statements assertions claims allegations accusations charges indictments prosecutions defenses arguments debates discussions dialogues conversations talks chats consultations meetings conferences seminars workshops webinars courses classes lessons lectures tutorials sessions modules units chapters sections parts segments phases stages steps milestones benchmarks indicators measures metrics criteria guidelines rules regulations policies laws statutes ordinances decrees mandates orders commands instructions directives advisories bulletins notices alerts warnings cautions reminders prompts cues signals signs symbols icons images pictures photos graphics charts diagrams tables graphs maps infographics animations videos audios podcasts music songs tunes tracks albums playlists libraries archives collections databases repositories registries inventories catalogs directories listings indexes records files documents papers articles essays stories narratives accounts reports chronicles journals diaries logs books novels novellas short stories poems lyrics scripts screenplays plays dramas comedies tragedies operas musicals ballets dances performances concerts recitals gigs shows acts routines sketches skits parodies satires spoofs caricatures cartoons comics strips panels frames scenes sequences shots takes cuts edits montages collages compositions arrangements orchestrations scores soundtracks mixes remixes mashups covers versions adaptations reinterpretations renditions variations transformations modifications alterations changes revisions updates upgrades improvements enhancements optimizations refinements adjustments tweaks fine-tuning calibrations alignments synchronizations integrations harmonizations consolidations unifications amalgamations mergers acquisitions partnerships collaborations cooperatives collectives federations unions leagues associations groups clubs societies organizations institutions agencies bodies councils boards committees commissions task forces working groups teams squads crews gangs bands troupes ensembles choirs choruses quartets quintets sextets septets octets nonets decimans big bands orchestras symphonies philharmonics chamber music ensembles string quartets wind quintets brass quintets woodwind quintet saxophone quartet clarinet quartet flute quartet oboe quartet bassoon quartet horn quartet trumpet trio trombone trio tuba duo percussion duo piano duo violin duo viola duo cello duo double bass soloist accompanist conductor director leader manager supervisor coordinator facilitator consultant advisor mentor coach trainer instructor teacher educator professor lecturer researcher scientist engineer technician technologist specialist expert authority guru master wizard sage shaman healer therapist counselor psychologist psychiatrist social worker caseworker advocate activist organizer campaigner lobbyist spokesperson representative ambassador diplomat envoy emissary agent intermediary negotiator mediator arbitrator adjudicator judge referee umpire moderator host presenter announcer commentator analyst critic reviewer blogger vlogger podcaster influencer celebrity star icon legend hero heroine role model idol inspiration motivator encourager supporter cheerleader fan follower subscriber member patron donor sponsor benefactor backer investor shareholder stakeholder partner collaborator ally friend associate colleague peer coworker teammate companion comrade confidant confidante soulmate kindred spirit fellow traveler wanderer seeker explorer adventurer pioneer trailblazer innovator creator inventor discoverer originator founder co-founder entrepreneur businessperson executive CEO CFO COO CTO CMO CIO president vice president chairman chairwoman chairperson board member director trustee officer official administrator manager supervisor coordinator facilitator consultant advisor mentor coach trainer instructor teacher educator professor lecturer researcher scientist engineer technician technologist specialist expert authority guru master wizard sage shaman healer therapist counselor psychologist psychiatrist social worker caseworker advocate activist organizer campaigner lobbyist spokesperson representative ambassador diplomat envoy emissary agent intermediary negotiator mediator arbitrator adjudicator judge referee umpire moderator host presenter announcer commentator analyst critic reviewer blogger vlogger podcaster influencer celebrity star icon legend hero heroine role model idol inspiration motivator encourager supporter cheerleader fan follower subscriber member patron donor sponsor benefactor backer investor shareholder stakeholder partner collaborator ally friend associate colleague peer coworker teammate companion comrade confidant confidante soulmate kindred spirit fellow traveler wanderer seeker explorer adventurer pioneer trailblazer innovator creator inventor discoverer originator founder co-founder entrepreneur businessperson executive CEO CFO COO CTO CMO CIO president vice president chairman chairwoman chairperson board member director trustee officer official administrator manager supervisor coordinator facilitator consultant advisor mentor coach trainer instructor teacher educator professor lecturer researcher scientist engineer technician technologist specialist expert authority guru master wizard sage shaman healer therapist counselor psychologist psychiatrist social worker caseworker advocate activist organizer campaigner lobbyist spokesperson representative ambassador diplomat envoy emissary agent intermediary negotiator mediator arbitrator adjudicator judge referee umpire moderator host presenter announcer commentator analyst critic reviewer blogger vlogger podcaster influencer celebrity star icon legend hero heroine role model idol inspiration motivator encourager supporter cheerleader fan follower subscriber member patron donor sponsor benefactor backer investor shareholder stakeholder partner collaborator ally friend associate colleague peer coworker teammate companion comrade confidant confidante soulmate kindred spirit fellow traveler wanderer seeker explorer adventurer pioneer trailblazer innovator creator inventor discover</p><p>MPN12345</p>
