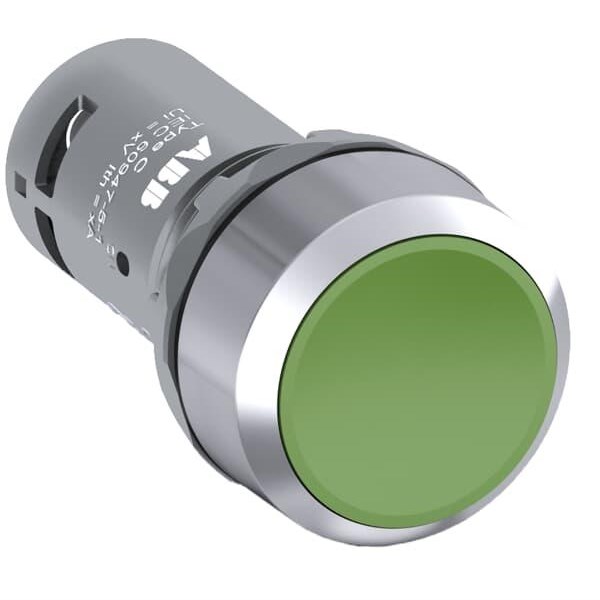

<p>The CP Series momentary push button is a reliable and robust choice for industrial and commercial applications. Designed to meet the rigorous demands of professional environments, this non-illuminated button offers a sleek design with its metal bezel in chrome finish and green actuator. Its dimensions—30 mm width, 30 mm height, and 55 mm depth—ensure it fits seamlessly into various panel configurations while maintaining an ergonomic profile.</p><p>This device operates efficiently across a wide temperature range from -25 to 70 degrees Celsius, making it suitable for diverse climates. The storage temperature extends further from -40 to 85 degrees Celsius, ensuring resilience during transportation or periods of inactivity. With an IP66, 67, 69K front protection rating and IP20 terminal protection, the button is well-equipped to withstand harsh conditions such as dust ingress or water jets.</p><p>It adheres to key industry standards including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, and EN IEC 60529. These certifications guarantee that the product meets essential safety and performance criteria required in demanding settings.</p><p>The electrical specifications are equally impressive. It features a rated insulation voltage of up to 300 V and can handle a rated thermal current of up to 5 A. The rated impulse withstand voltage stands at an impressive 6 kV. This ensures that the device can manage transient overvoltages effectively without compromising on safety or performance.</p><p>Designed for ease of installation with screw terminals requiring a tightening torque of just 1 N-m, it supports flexible wiring options ranging from ferrules (insulated or not) to solid wires within the capacity of up to two conductors each measuring between 0.5 sq-mm and 1.5 sq-mm in cross-sectional area. A wire stripping length of only six millimeters facilitates quick connections without fuss.</p><p>The contact configuration includes one normally open (NO) contact plus one normally closed (NC) contact providing versatile control capabilities suited for varied operational needs in automation systems.</p><p>With mechanical life expectancy reaching half a million operations this component promises durability even under frequent use scenarios common in industrial setups ensuring longevity thereby reducing maintenance intervals significantly contributing towards lower total cost ownership over time</p><p>In terms of enclosure compatibility it matches several NEMA types including NEMA Type:1 ,12 ,13 ,3R ,4 &amp;4X thus offering flexibility when integrating into existing systems</p><p>Weighing just .036 kg it&#39;s lightweight yet sturdy enough not compromise structural integrity during application Manufacturer Part Number: CP</p>
