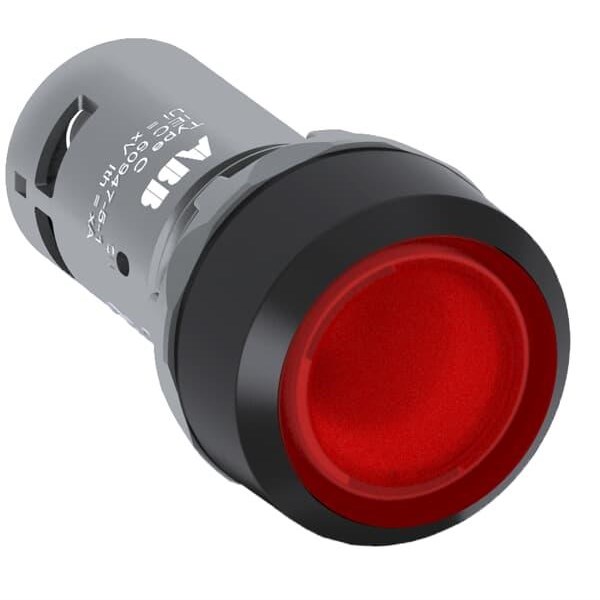

<p>For professionals in the electrical and automation industries, selecting the right components for your systems is crucial. The CP series switch offers reliability and performance, making it a solid choice for various industrial and commercial applications.</p><p>This switch operates at a rated voltage of 230 VAC/DC with a frequency of 50/60 Hz, ensuring compatibility with standard electrical systems. Its illumination feature is powered by an LED lamp that emits a red light, providing clear visual feedback during operation.</p><p>The compact dimensions—30 mm in width and height, with a depth of 55 mm—allow for easy integration into panels where space might be limited. Despite its size, this product doesn&#39;t compromise on durability or protection. It boasts an impressive degree of protection: IP66, IP67, and IP69K at the front end provide robust resistance against dust and water ingress, while IP20 protects the terminal side.</p><p>Designed to operate efficiently within a wide temperature range from -25 to 70 degrees Celsius (with storage capabilities between -40 to 85 degrees Celsius), this switch can withstand harsh environmental conditions without losing functionality. With an operational life expectancy of up to half a million operations mechanically, it promises longevity in demanding settings.</p><p>Installation is straightforward thanks to its screw terminal type connection. The tightening torque requirement is set at 1 N-m for secure connections. It supports various wire types including flexible wires with ferrules or insulated ferrules ranging from 0.5 to 1.5 square millimeters.</p><p>Safety compliance is assured as it meets several international standards such as EN IEC 60947-1, EN IEC 60947-5-1 among others—ensuring adherence to quality norms vital for industrial applications.</p><p>Functionally designed as maintained with a flush actuator type ensures ease of use while maintaining safety protocols through its contact configuration of one normally closed (1NC) setup. Rated insulation voltage stands at 300 V alongside an impressive impulse withstand capability of up to 6 kV which enhances overall system resilience against surges or transient voltages common in industrial environments.</p><p>Weighing only about 0.025 kg makes handling simple yet effective due largely because despite being lightweight; constructed using sturdy plastic material especially around bezel area further reinforces structural integrity even under tough operational scenarios typical across many Australian workplaces today!</p><p>In conclusion when considering all these features together—it becomes evident why choosing this particular model could very well satisfy most if not all technical requirements you may have been searching diligently towards fulfilling thus far hence proving itself invaluable addition indeed!</p>
