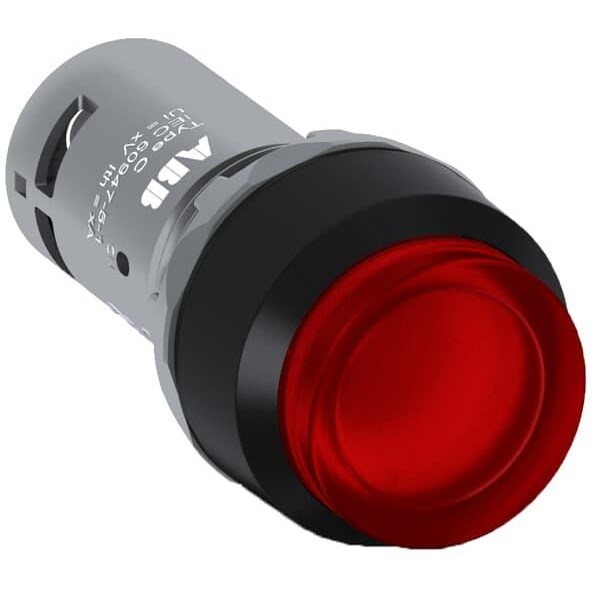

<p>The CP Series illuminated actuator is a robust and reliable component designed for industrial and commercial applications. With a rated voltage of 24 VAC/DC and operating on frequencies of 50/60 Hz, this actuator ensures compatibility with standard power systems. Its compact dimensions—30 mm in width, 30 mm in height, and 55 mm in depth—make it suitable for installations where space is limited.</p><p>This product excels in durability, featuring an operational temperature range from -25 to 70 degrees Celsius, making it adaptable to various environmental conditions. The storage temperature extends further from -40 to 85 degrees Celsius, ensuring the device remains stable during downtime or transport.</p><p>Engineered with a screw terminal type that allows easy connection using flexible or solid wires ranging from 0.5 to 1.5 square millimeters, this actuator supports secure installation with a tightening torque of 1 N-m. The wire stripping length required is just 6 mm, facilitating quick setup.</p><p>Safety and protection are paramount; the actuator boasts an impressive degree of protection: IP66, IP67, and IP69K at the front end ensure resistance against dust ingress and high-pressure water jets while maintaining an IP20 rating at the terminal level for basic touch safety.</p><p>Compliance with industry standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, and EN IEC 60529 underscores its quality assurance credentials. The mechanical life expectancy stands at half a million operations—a testament to its reliability over extended use.</p><p>The red LED lamp provides clear visual feedback when activated within its maintained function configuration which utilizes a contact arrangement of one normally closed (1NC) circuit providing consistent performance under load conditions up to a rated thermal current of five amperes.</p><p>For enhanced resilience against harsh environments or exposure scenarios like outdoor settings or washdowns common across industries including food processing plants or marine applications—the enclosure meets NEMA types: one twelve thirteen three R four four X specifications offering comprehensive coverage against external elements.</p><p>Weighing only twenty-five grams this piece integrates seamlessly without adding unnecessary bulk into existing setups while retaining structural integrity via plastic bezel construction ensuring longevity despite frequent handling typical during operation cycles expected throughout service life span supported by six-kilovolt impulse withstand voltage rating safeguarding internal circuitry from transient surges potentially encountered during regular usage patterns commonly associated within electrically demanding contexts found across diverse sectors reliant upon automation technology solutions today!</p>
