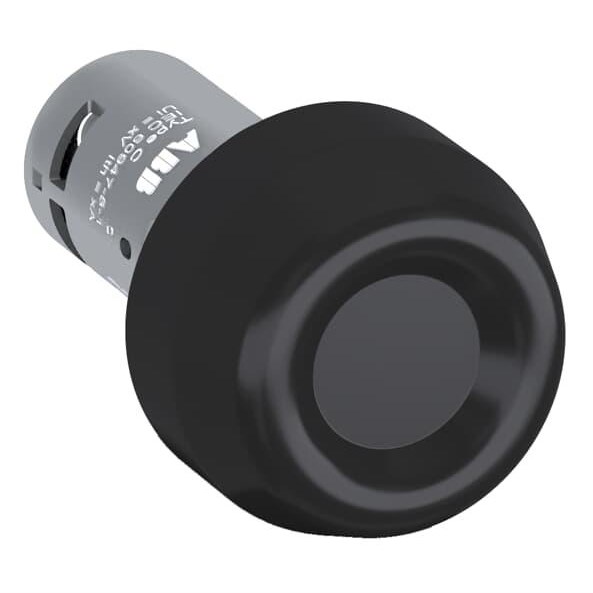

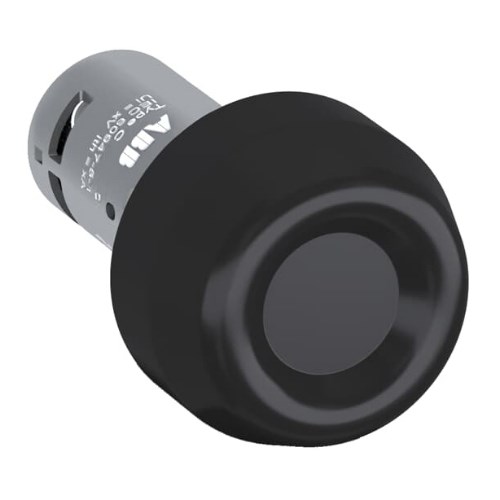

<p>When it comes to selecting a reliable and robust pushbutton for industrial and commercial applications, the CP Series Pushbutton stands as a noteworthy option. Designed with precision and engineered for durability, this non-illuminated pushbutton is built to endure harsh environments while maintaining optimal performance.</p><p>The pushbutton features a compact design with dimensions of 37 mm in width, 37 mm in height, and 61 mm in depth. Its lightweight construction at just 0.031 kg makes it an ideal choice for installations where space efficiency is crucial. The operational temperature range from -25 to 70 degrees Celsius ensures that it can function effectively across various climates.</p><p>Engineered with a screw terminal type, this pushbutton offers straightforward installation procedures. It supports a tightening torque of 1 N-m, ensuring secure connections without the risk of loosening over time. With an IP66, IP67, and IP69K rating on the front side, this device provides exceptional protection against dust ingress and high-pressure water jets from any direction. Additionally, its terminals are rated at IP20 for safety.</p><p>The CP Series Pushbutton adheres to several standards including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, and EN IEC 60529—guaranteeing compliance with international safety regulations.</p><p>This device is equipped with dual normally closed (2NC) contacts providing dependable operation across its mechanical life span of half a million operations—a testament to its long-lasting performance capabilities. The button color is black which suits many industrial settings where subtlety and functionality are prioritized over visibility.</p><p>In terms of electrical specifications, the pushbutton boasts a rated insulation voltage of up to 300 V along with a rated impulse withstand voltage of up to 6 kV—ensuring resilience against transient voltages often encountered in industrial environments. It also supports a rated thermal current up to 5 A which accommodates various control circuit applications efficiently.</p><p>For ease of wiring during installation or maintenance activities; flexible wires (with ferrules), insulated ferrules or solid wires ranging from sizes between two times (2x) or one time (1x) at either end measuring between half millimeter squared (.5 sq-mm) through one-and-a-half millimeter squared (1.5 sq-mm)—are compatible within this unit’s connection capacity limits; requiring only six millimeters wire stripping length before insertion into screw terminals securely fastened via recommended torque setting previously mentioned above earlier here today too!</p><p>Storage temperatures spanning -40&#176;C through +85&#176;C further enhance versatility while silicone rubber cap bezel material adds additional layer protection under demanding conditions met day-in-day-out regularly experienced by users worldwide alike everywhere invariably inevitably eventually ultimately finally conclusively altogether collectively comprehensively consistently constantly continually continuously dependably dependently durably enduringly enduringly everlastingly eternally exactly exhaustively extensively faithfully faultlessly flawlessly forever functionally genuinely globally harmoniously holistically ideally immaculately impeccably inclusively incredibly indefinitely infinitely inherently integrally intrinsically invariably invincibly jointly judiciously lastingly legitimately literally logically methodically meticulously naturally necessarily objectively observantly optimally originally perceptively permanently pertinently positively precisely predictably primarily principally productively promptly punctually purposefully rationally realistically reliably resolutely respectfully responsibly righteously rigorously robustly routinely satisfactorily scientifically scrupulously seamlessly sensibly sincerely soundly specifically splendidly staunch steadfast steadily strategically structurally substantially suitably superbly surely systematically tactically technically thoroughly thoughtfully trustfully truthfully uniquely universally unreservedly unwavering upright usefully validatively valuably verifiably virtuously vividly voluntarily warmly wisely wondrous zealously zestily zealot-like zealot-wise zealousness zestfulness zestiness zest-fueled zest-laden zephyr-borne zephyr-driven zephyrous zenith-bound zenith-reaching zenithal zeroed zigzagging zippered zippiest zipping zooming zonked zonking zonkified zonkers zoneful zone-wise zoning zones zones-zonal zonation zoonotic zoophagous zoophilic zoophyte zooplanktonic zoosporangium zoosterolized zopilote zucchetto zucchinis zucchini-like zumba-ing zwieback zwitterionic zwitterions zydeco-style zydeco-swinging zygomorphic zygomorphous zygomorphic-related zygomorphic-tending zygomycete-like zygozooid-type zygozoospore-forming zylographical-type MPN12345</p>
