Specifications

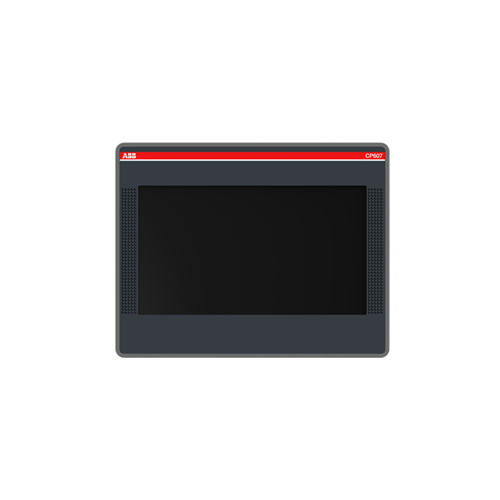

Product Type	Control Panel
Brand	ABB
Series	CP600-eCo
Communication Ports	Industrial Ethernet 1, Other 1, Parallel 0, RS-232 0, RS-422 0, RS-485 0, Serial TTY 0, USB 1, Wireless 0, PROFINET 0
Power Consumption	0.30 A at 24 V DC
Supply Voltage	18…32 V DC
Terminal Type	Removable 3-pin Screw Terminal
Colour	65536 Colors (Screen)
Display Colour	65536 Colors
Housing Material	Plastic
Mounting Method	Panel mounting
Depth	35 mm
Height	147 mm
Width	187 mm
Panel Cut-Out Size	176 mm x 136 mm
Display Size	155.50 mm x 88 mm
Storage Temperature	-20 to +70 °C
Operating Temperature	0 to 50 °C
IP Rating	IP66 (Front), IP20 (Rear)
Ethernet Port Speed	10/100 Mbit
Ethernet Ports	1
Serial Ports	1
USB Port	1
Supported Serial Protocols	RS-232, RS-485, RS-424
Touch Type	TFT Resistive Touch
Hazardous Location Ratings	NA
Compliance Standards	EN 61000-6-2, EN 61000-6-6
