Specifications

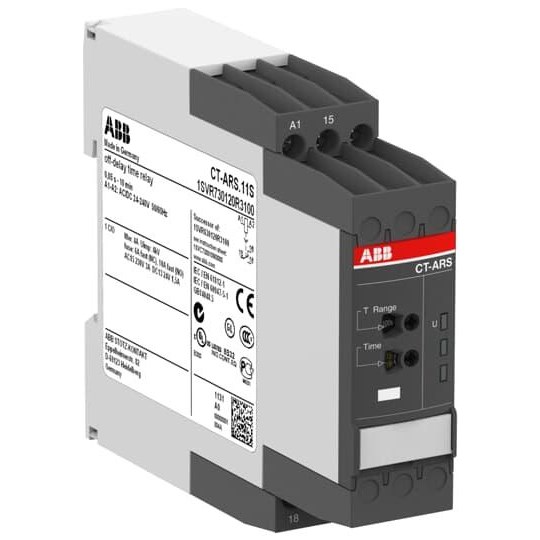

Product Type	Time relay
Brand	ABB
Series	CT
Rated Control Supply Voltage (Us)	24 ... 240 V AC/DC
Rated Insulation Voltage (Ui)	Input Circuit / Output Circuit 500 VOutput Circuit 1 / Output Circuit 2 300 V
Rated Operational Current AC-15 (Ie)	(230 V) 3 A
Rated Operational Voltage (DC)	Auxiliary Circuit 250 V
Output Type	1 C/O (SPDT) Contact
Rated Frequency	50 / 60 HzDC
Terminal Type	Screw Terminals
Rated Operational Current AC-12 (Ie)	(230 V) 4 A
Rated Operational Current DC-12 (Ie)	(24 V) 4 A
Rated Operational Current DC-13 (Ie)	(24 V) 1.5 A
Timer Relay Type	True OFF-Delay
Time Range	0.05 s ... 10 min
Short-Circuit Protective Devices	Output Circuit NC-F Type Fuses 6 AOutput Circuit NO-F Type Fuses 10 A
Depth	103.7 mm
Height	85.6 mm
Weight	0.106 kg
Width	22.5 mm
Storage Temperature	-40 ... +85 °C
Operating Temperature	-25 ... +60 °C
IP Rating	IP50
