Specifications

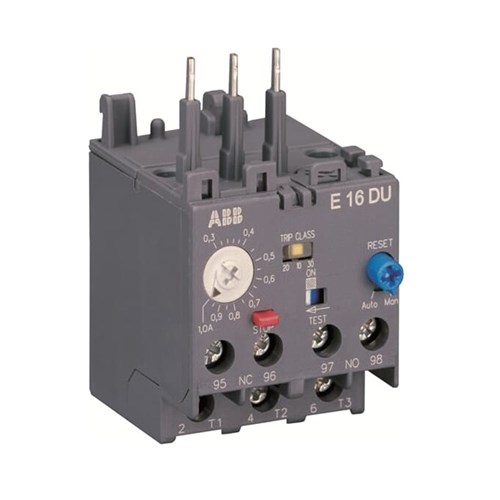

Product Type	Electronic Overload Relays
Brand	ABB
Suitable Product Range	B6 B7 BC6 BC7 A09 A12 A16 AL09 AL12 AL16 VB6 VB7 VBC6 VBC7
Thermal Current Setting Range	2.0 ... 6.3 A
Trip Class	10E, 20E, 30E
Max. Operating Voltage	Main Circuit 600 V AC
Depth	57 mm
Height	74.6 mm
Weight	0.15 kg
Width	44.4 mm
Standards and Approvals	IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1
