Specifications

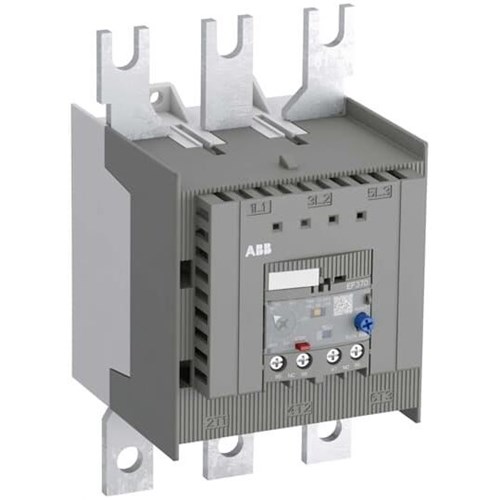

Product Type	Electronic Overload Relay
Brand	ABB
Suitable Product Range	A210; A260; A300; AF210; AF260; AF265; AF300; AF305; AF370
Max. Operational Voltage	1000 VAC
Suitable for Single Phase / Three Phase	Three Phase
Thermal Current Setting Range	115 ... 380 A
Trip Class	10E; 20E; 30E
Depth	122.8 mm
Height	187.6 mm
Weight	1.338 kg
Width	105 mm
Standards and Approvals	IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1
