Specifications

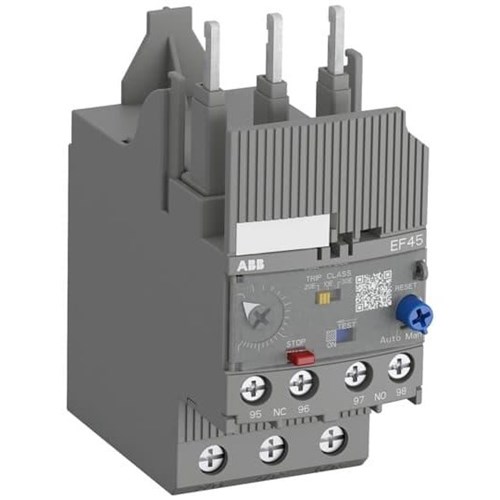

Product Type	Electronic Overload Relay
Brand	ABB
Suitable Product Range	AF26; AF30; AF38
Max. Operational Voltage	690 VAC
Suitable for Single Phase / Three Phase	Three Phase
Thermal Current Setting Range	15.0 ... 45.0 A
Trip Class	10E; 20E; 30E
Depth	86 mm
Height	104.7 mm
Weight	0.362 kg
Width	45 mm
Standards and Approvals	IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1
