Specifications

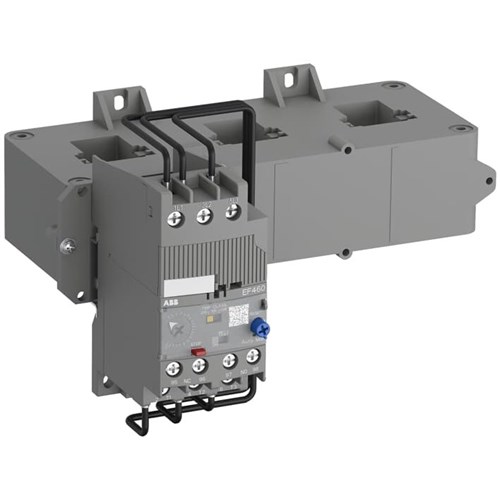

Product Type	Electronic Overload Relay
Brand	ABB
Suitable Product Range	AF400; AF460
Max. Operational Voltage	1000 VAC
Suitable for Single Phase / Three Phase	Three Phase
Thermal Current Setting Range	150 ... 500 A
Trip Class	10E; 20E; 30E
Depth	152.1 mm
Height	103.5 mm
Weight	1.182 kg
Width	186 mm
Standards and Approvals	IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1
