Specifications

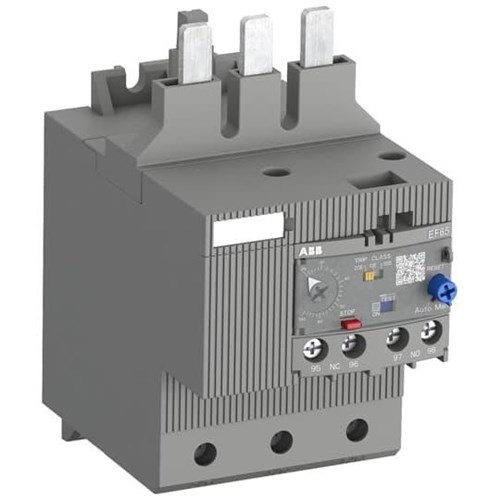

Product Type	Electronic Overload Relay
Brand	ABB
Suitable Product Range	AF40; AF52; AF65
Max. Operational Voltage	1000 VAC
Suitable for Single Phase / Three Phase	Three Phase
Thermal Current Setting Range	25 ... 70 A
Trip Class	10E; 20E; 30E
Depth	105.2 mm
Height	131.2 mm
Weight	0.821 kg
Width	70 mm
Standards and Approvals	IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1
