Specifications

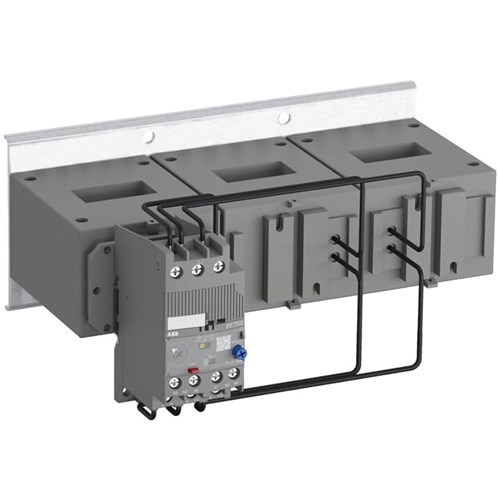

Product Type	Electronic Overload Relay
Brand	ABB
Suitable Product Range	AF580; AF750
Max. Operational Voltage	1000 VAC
Suitable for Single Phase / Three Phase	Three Phase
Thermal Current Setting Range	250 ... 800 A
Trip Class	10E; 20E; 30E
Depth	187.73 mm
Height	111.6 mm
Weight	2.765 kg
Width	244 mm
Standards and Approvals	IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1
