Specifications

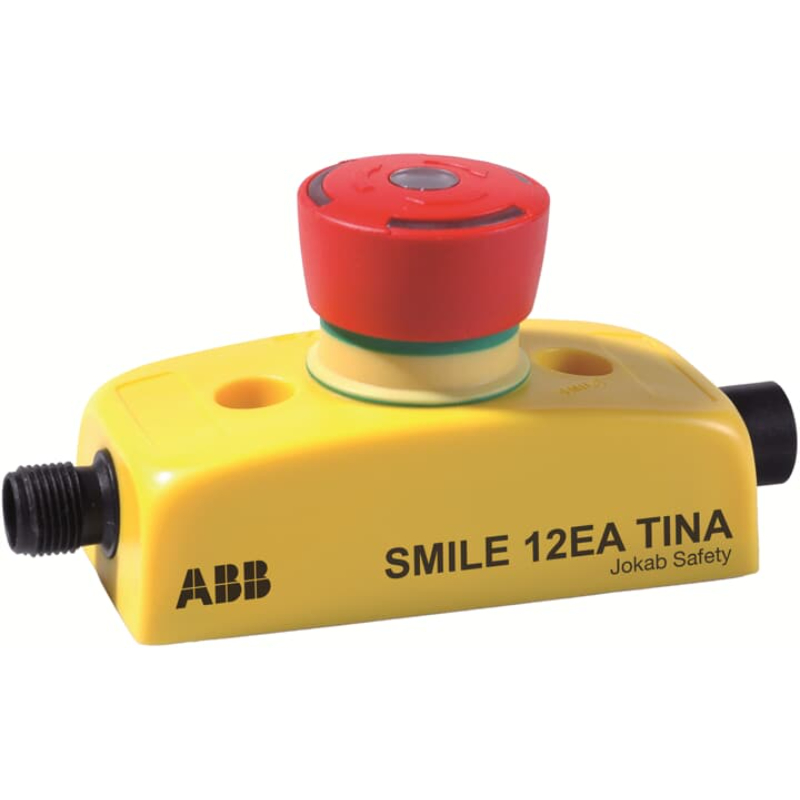

Product Type	Emergency stop button
Brand	ABB
Series	Smile
Illumination	LED
Rated Current	2 A
Rated Voltage	24 VDC
Terminal Type	M12 5-Pole
Cable Entry	Both short side of the unit
Housing Colour	Yellow
Housing Material	Polyamide PA66, Macromelt, polybutylenterephthalate PBT, Polypropene PP, UL 94 V5
Pushbutton Colour	Red
Pushbutton Material	Thermoplastics
Pushbutton Type	Mushroom
Unlocking Method	Turn and Release
Mounting Hole Diameter (mm)	32.5 mm
Button Diameter (mm)	32 mm
Enclosure Dimensions (W x H x D)	40 x 52 x 109 mm
IP Rating	IP65
