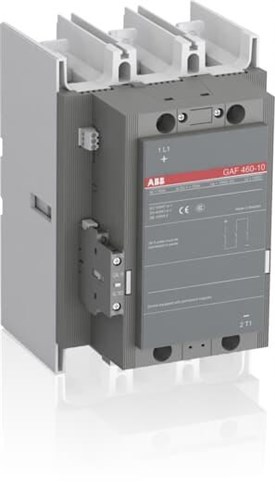

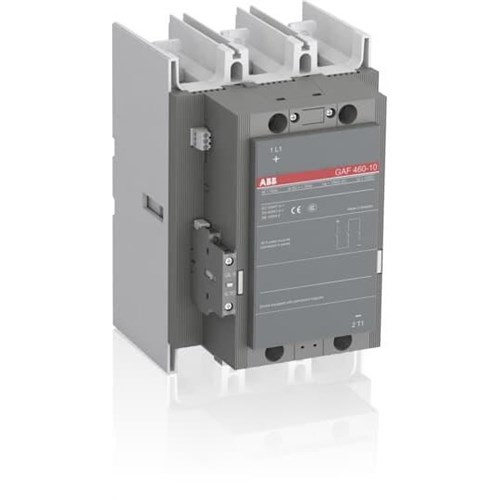

ABB GAF460101168 DC Contactor 3P 1NO 600A 24-60VDC Bar Panel Mount

Product Code: GAF460101168

  • DC contactor with 600 A rated current
  • Operates on 24-60 VDC voltage range
  • IP20 protection for safe use
  • Panel mounting for easy installation
  • Compact dimensions: 186x278x216 mm
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type DC Contactor
Brand ABB
Contact Configuration 1NO
Degree of Protection IP20
Depth 216 mm
Height 278 mm
Mounting Type Panel
Number of Poles 3
Power Loss 42 W
Rated Current 600 A
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 1000 V
Rated Voltage 24-60 VDC
Storage Temperature -40 to 70 deg C
Terminal Type Bar
Width 186 mm

Description

<p>When you&amp;#39;re dealing with heavy-duty electrical systems, choosing the right components is crucial for safety and efficiency. This DC Contactor is designed to meet the demanding requirements of industrial and commercial applications, offering reliable performance within its specified range.</p><p>With a rated voltage spanning 24 to 60 VDC and a robust rated current capacity of 600 A, this contactor efficiently handles substantial power loads. It&amp;#39;s engineered to minimize energy wastage with a power loss of just 42 W. The device&amp;#39;s resilience is further highlighted by its impressive rated impulse withstand voltage of 8 kV and an insulation voltage rating of 1000 V, ensuring it can handle unexpected surges without compromising safety or functionality.</p><p>The contact configuration is set as 1 Normally Open (1NO), which suits various applications where circuit control is required. The bar terminal type facilitates secure connections, crucial for maintaining system integrity under high-load conditions.</p><p>Designed with practicality in mind, this contactor features an IP20 degree of protection. While not fully dust-tight or waterproof, it offers adequate protection against solid objects larger than 12 mm in diameter—suitable for controlled environments like panels or cabinets where exposure to harsh elements is minimal.</p><p>For installation flexibility, the panel mounting type allows easy integration into existing setups without requiring extensive modifications. Its dimensions are compact enough for most standard enclosures: a width of 186 mm, height of 278 mm, and depth of 216 mm provide ample space while maintaining manageability during installation.</p><p>Storage conditions won&amp;#39;t be a concern either; this unit can withstand temperatures ranging from -40&amp;#176;C to +70&amp;#176;C without losing performance integrity—ideal for diverse operational environments found across Australia’s varied climate zones.</p><p>In summary, this DC Contactor balances reliability with efficiency through its comprehensive specifications tailored for demanding industrial needs. Whether you&amp;#39;re upgrading an existing system or setting up new installations, these features ensure that your operations run smoothly and safely within their technical limits.</p>
