Specifications

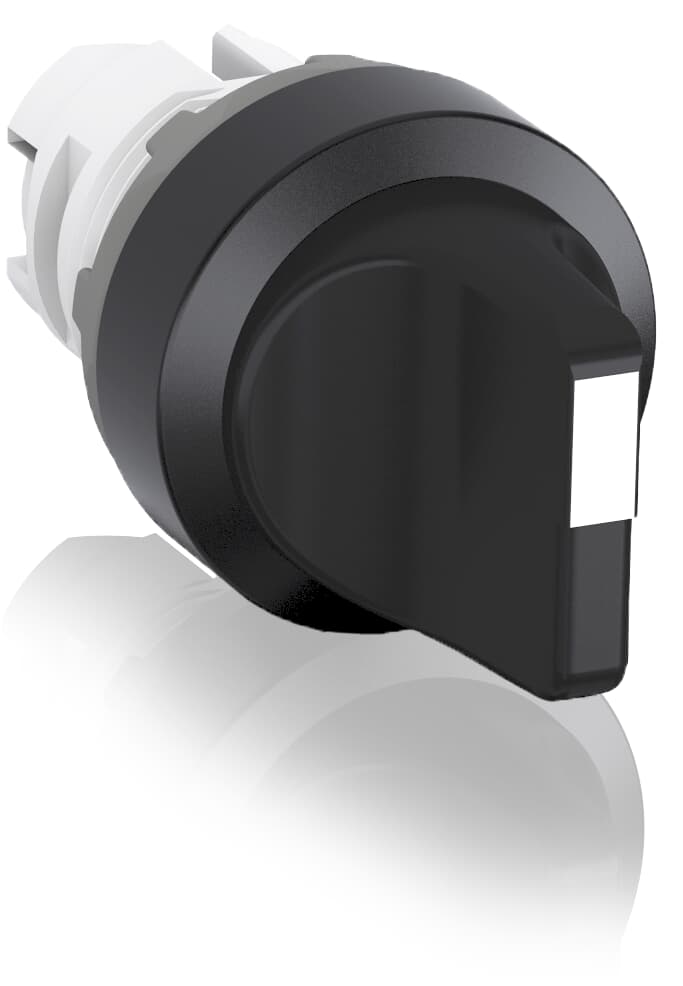

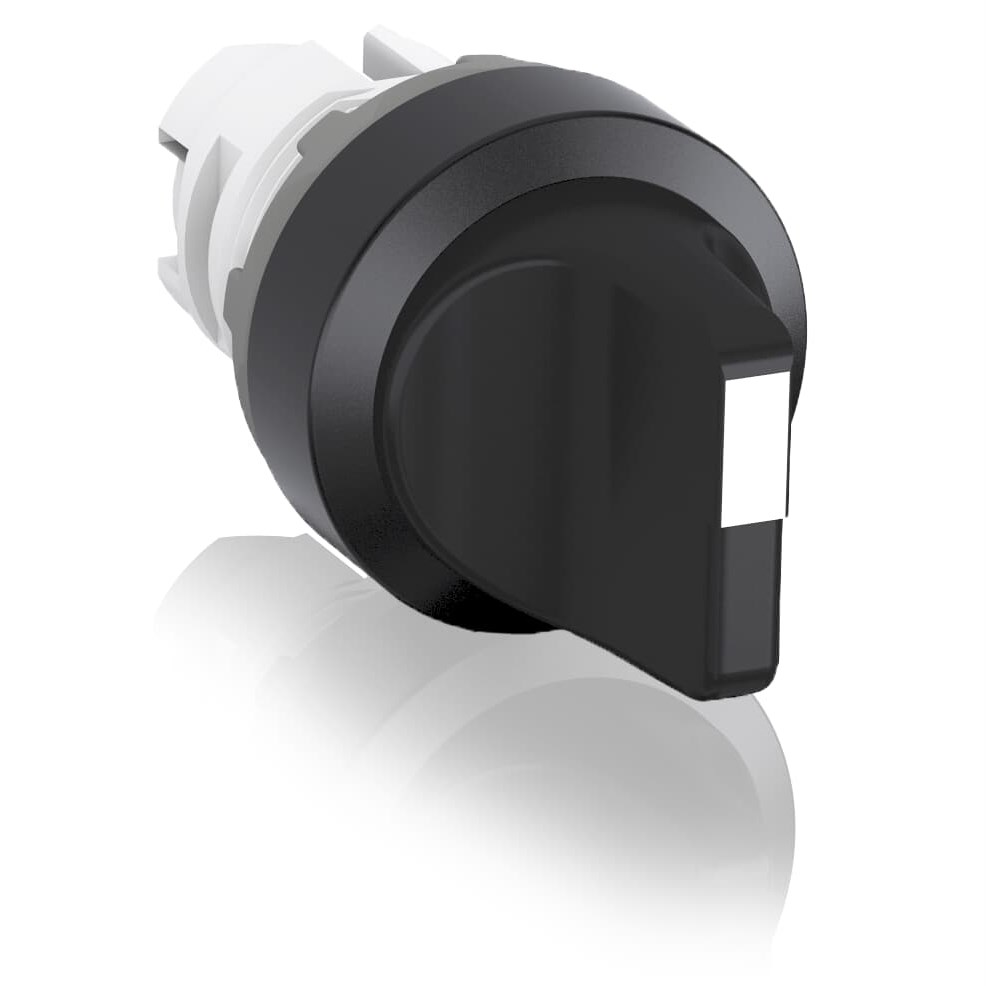

Product Type	Selector Switch
Brand	ABB
Actuator Type	Short Handle
Bezel Material	Plastic
Colour	Black
Degree of Protection	IP66
Depth	50 mm
Function	Momentary
Height	30 mm
Illumination	Non-Illuminated
Maintained Position	A, C, B
Material	Plastic
Mode of Operation	Momentary 3-Position Selector Switch
NEMA Rating	NEMA 1, 12, 13, 3R, 4, 4X
Number of Positions	3
Operational Temperature	-25 to 70 deg C
Standards and Approvals	IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5
Storage Temperature	-25 to 85 deg C
Weight	0.015 kg
Width	48 mm
