Specifications

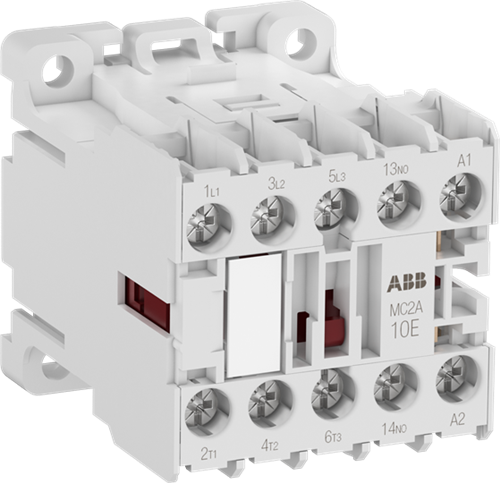

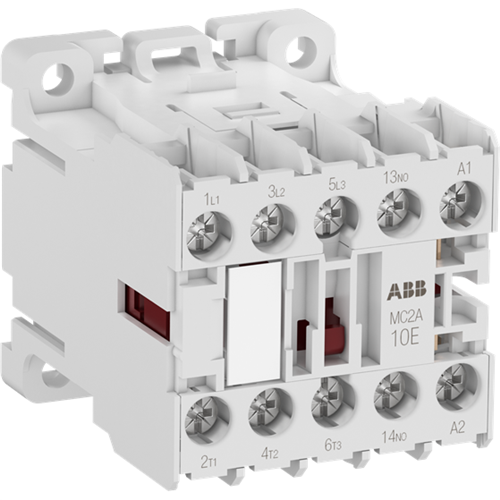

Product Type	Mini Contactor
Brand	ABB
No. of Poles (Total)	3
Rated Control Supply Voltage (Us)	24 V AC 50/60 Hz
Rated Operational Current AC-1 <= 440V (Ie)	55 °C 20 A
Rated Operational Current AC-1 <= 690V (Ie)	55 °C 20 A
Rated Operational Current AC-3 400V (Ie)	55 °C 12 A
Rated Operational Current AC-3 690V (Ie)	55°C 5 A
Rated Operational Power AC-3 400V (Pe)	5.5 kW
Rated Operational Power AC-3 690V (Pe)	4 kW
Rated Frequency	50/60 Hz
No. of Auxiliary Contacts (NO/NC)	1 NC
Depth	56 mm
Height	48 mm
Weight	0.170 kg
Width	45 mm
Ambient Temperatures	-40 ... +55 °C
Standards and Approvals	IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1; UL 60947-5-1
