Specifications

Product Type	METERING MODULE 5A SCU200
Brand	ABB
Application	Power quality
Connection Type	InSite modular bus
Communication Interface	InSiteModularBus
Over Voltage Category	II
Product Compatibility	SCU200
Rated Operational Current AC-15 (Ie)	0.7 A
Accuracy	2
Accuracy Class	1% Activeenergy (1/0.8 PF)
Power Consumption	0.007 kW
Rated Frequency	50/60 Hz
Supply Voltage	240 V
Mounting Type	DIN-Rail
Depth	64.9 mm
Height	87 mm
Weight	0.052 kg
Width	17.4 mm
IP Rating	IP20
Ambient Temperature	Operation -25 ... 60 °C
Standards and Approvals	EN 61010-1 / IEC 61010-1 EN IEC 61326-1, UL 61010-1

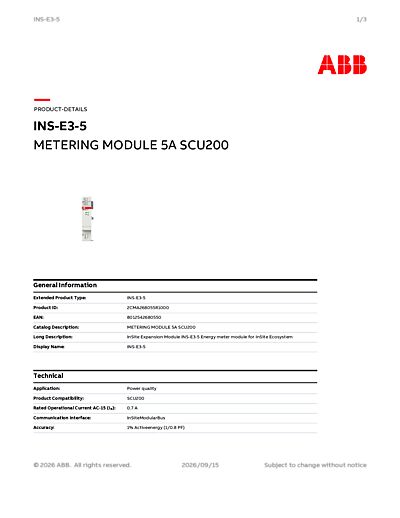

ABB INS-E3-5 METERING MODULE 5A SCU200 FOR INSITE ECOSYSTEM
