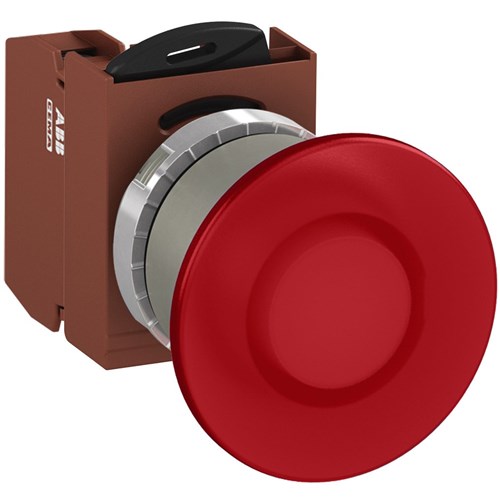

ABB MMMIR4OFP210 Illuminated Pushbutton Kit 40mm Mushroom Momentary Red 24VAC/DC 1NO Faston Power Supply

Product Code: MMMIR4OFP210

  • 24 VAC/DC illuminated mushroom actuator
  • IP66 protection for harsh environments
  • Operates in -30 to 70°C conditions
  • Includes operator, contact block, and lamp
  • Suitable for mining and heavy industry
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Mushroom
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour Red
Connection Type Faston
Contact Configuration 1NO
Cutout Size 40 mm
Degree of Protection IP66
Diameter 40 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour Red
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>For those working in the demanding sectors of mining, construction, and heavy industry, having reliable equipment is crucial. The product at hand is designed to meet these rigorous requirements with its robust specifications and durable construction.</p><p>Operating at a rated voltage of 24 VAC/DC, this device ensures compatibility with various power systems. It features an illuminated actuator for enhanced visibility, which is especially beneficial in low-light environments commonly found on industrial sites. The IP66 degree of protection guarantees resistance against dust and powerful water jets, making it suitable for challenging outdoor conditions.</p><p>Adhering to multiple standards and approvals such as EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, and CSA C22.2 No. 14 assures compliance with international safety regulations—a critical factor for any technical professional seeking peace of mind.</p><p>The ambient temperature range from -30 to 70 degrees Celsius allows this product to function effectively across diverse climates without compromising performance. Its Faston connection type supports quick installation and maintenance—an essential feature for minimizing downtime in high-pressure environments.</p><p>With a rated insulation voltage of 690 V and a rated impulse withstand voltage of 4 kV, this component offers excellent electrical endurance. The contact configuration includes one normally open (1NO) contact that suits many control applications where momentary functions are needed.</p><p>Designed with a mushroom actuator type featuring a diameter of 40 mm provides an ergonomic interface that facilitates ease of use even when wearing gloves—a common requirement in industrial settings. The red lamp color indicates status or alerts effectively while using BA9S lamp type known for its reliability.</p><p>The momentary function ensures that the switch returns to its original position after activation—ideal for operations requiring temporary engagement like start/stop commands or emergency shutdowns. Rated thermal current stands at an impressive 10 A supporting substantial load handling capacity.</p><p>Crafted with metal bezel material enhances durability while maintaining aesthetic appeal suited to professional environments. With a cutout size also measuring at 40 mm integration into existing panels becomes straightforward ensuring seamless upgrades or replacements within your system architecture.</p><p>Included components such as operator contact block maintained accessories power supply (lamp block) along with the lamp itself provide comprehensive functionality straight out-of-the-box saving time during setup phases critical during project deployments where efficiency is key.</p>
