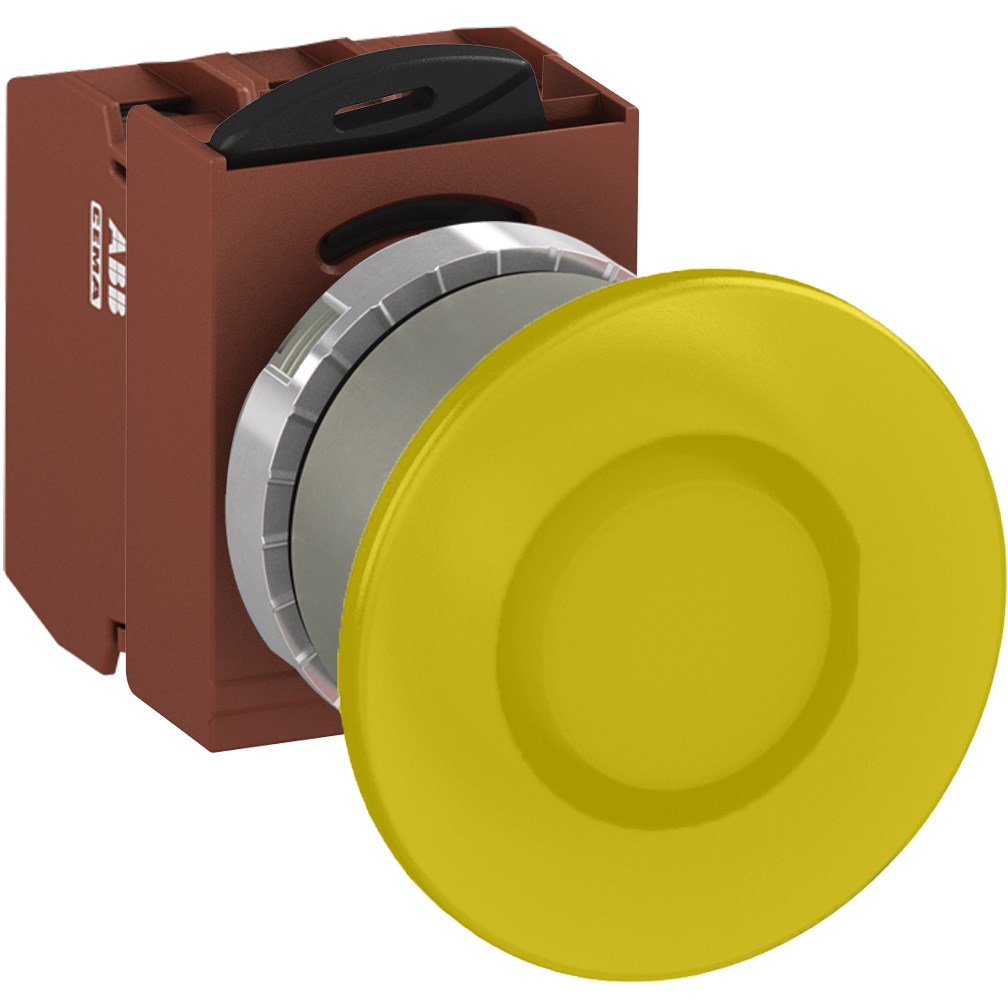

<p>When it comes to industrial applications in the mining, construction, and heavy industry sectors, reliability and performance are paramount. This illuminated mushroom actuator offers robust functionality tailored for demanding environments. Let&#39;s delve into its specifications to see if it aligns with your technical requirements.</p><p>Operating at a rated voltage of 24 VAC/DC, this device is designed for seamless integration into various electrical systems. Its illumination feature ensures visibility even in dimly lit conditions, which can be crucial for operational efficiency and safety.</p><p>The unit boasts an IP66 degree of protection, indicating its resilience against dust ingress and powerful water jets—ideal for harsh industrial settings. Compliance with standards such as EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 along with UL 508 and CSA C22.2 No. 14 certifications further underscores its quality assurance across global markets.</p><p>This product operates efficiently within a wide ambient temperature range from -30 to 70 degrees Celsius. The screw connection type facilitates secure installation while supporting a rated insulation voltage of up to 690 V—a testament to its robustness under high-voltage conditions.</p><p>Featuring a contact configuration of 1NO+1NC (one normally open and one normally closed), this actuator provides flexibility in circuit design and control logic implementation. It also withstands impulse voltages up to 4 kV, ensuring durability against transient overvoltages.</p><p>The mushroom actuator has a diameter of 40 mm with an ergonomic design that allows for easy activation during emergency situations or routine operations. The yellow BA9S lamp enhances visibility while maintaining energy efficiency.</p><p>Functionality-wise, this is a momentary switch—meaning it returns to its default position once released—offering precise control without unintended actuation.</p><p>With a rated thermal current capacity of up to 10 A, the device supports substantial current loads typical in industrial applications without overheating risks. Constructed with metal bezel material, it combines durability with aesthetic appeal suitable for professional environments.</p><p>Installation is straightforward thanks to the cutout size matching the standard diameter at 40 mm; ensuring compatibility with existing setups or new installations alike.</p><p>Included components such as the operator mechanism contact block maintained accessories power supply (lamp block) and lamp make it a comprehensive solution ready out-of-the-box reducing setup time significantly.</p><p>Overall this illuminated mushroom actuator stands out as reliable efficient component designed specifically catering needs found within challenging industries like mining construction heavy-duty operations where performance cannot be compromised on any front.</p>
