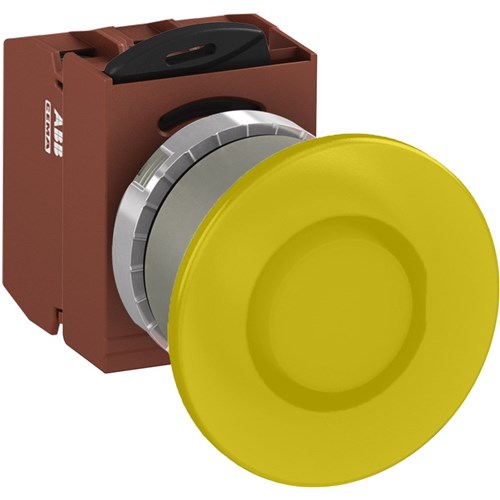

ABB MMMIY4OSP611 Illuminated Pushbutton Kit 40mm Mushroom Momentary Yellow 230VAC/DC 1NO+1NC Screw Power Supply

Product Code: MMMIY4OSP611

  • 230V illuminated mushroom actuator
  • IP66 protection for harsh conditions
  • Operates in -30 to 70°C environments
  • Meets multiple international standards
  • Suitable for mining, construction, heavy industry
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Mushroom
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Connection Type Screw
Contact Configuration 1NO+1NC
Cutout Size 40 mm
Degree of Protection IP66
Diameter 40 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour Yellow
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>This robust industrial control device is crafted to meet the demanding needs of mining, construction, and heavy industry applications. Operating at a rated voltage of 230 VAC/DC, this illuminated mushroom actuator stands out with its yellow BA9S lamp, ensuring clear visibility in various operational environments. Designed with user safety and functionality in mind, it boasts an IP66 degree of protection, making it resistant to dust and powerful water jets.</p><p>Engineered for reliability, the device conforms to several international standards including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 certifications. This ensures compatibility and safety across global markets.</p><p>The actuator features a momentary function with a contact configuration of one normally open (1NO) and one normally closed (1NC), offering flexibility for various control scenarios. With a rated insulation voltage of up to 690 V and an impressive impulse withstand voltage rating of 4 kV, it is designed to handle high-stress electrical environments efficiently.</p><p>Built for durability in extreme conditions, it can operate within an ambient temperature range from -30&amp;#176;C to +70&amp;#176;C. The screw connection type facilitates easy installation while maintaining secure connectivity under demanding conditions.</p><p>The device&amp;#39;s thermal current rating is set at 10 A which supports substantial load handling capabilities typical in heavy-duty operations. Its metal bezel material adds an extra layer of durability against physical impacts often encountered in industrial settings.</p><p>With a cutout size matching its diameter at 40 mm, installation becomes straightforward without compromising on stability or performance integrity. The light blocks are powered by a dedicated power supply included within the assembly along with maintained accessories such as the operator and contact block—ensuring all necessary components are readily available upon purchase.</p><p>Whether you&amp;#39;re outfitting new equipment or upgrading existing systems within harsh working conditions like those found in mining or construction sites—this product offers both resilience and precision engineering tailored for your specific application needs.</p>
