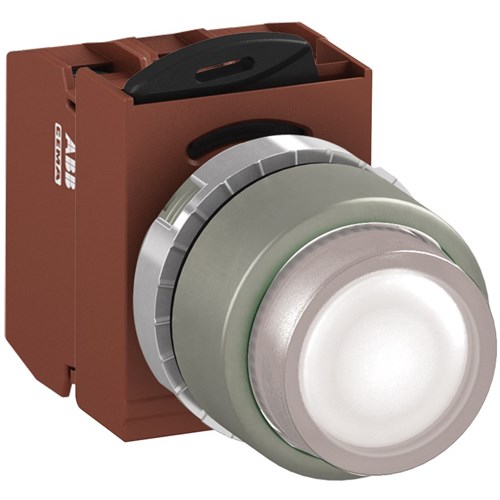

ABB MMPIEWOFP220 Illuminated Pushbutton Kit 22mm Extended Momentary White 24VAC/DC 2NO Faston Power Supply

Product Code: MMPIEWOFP220

  • 24 VAC/DC illuminated actuator
  • IP66 protection for harsh conditions
  • Operates in -30 to 70°C range
  • Compatible with mining & heavy industries
  • Metal bezel and 22 mm cutout size
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Extended
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour White
Connection Type Faston
Contact Configuration 2NO
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour White
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>When selecting components for industrial applications, understanding the technical specifications is crucial. This illuminated pushbutton switch is a reliable choice designed to meet demanding environments. With a rated voltage of 24 VAC/DC, it offers versatility in various electrical systems. The device&amp;#39;s illumination feature enhances visibility and operational efficiency, especially in low-light conditions.</p><p>Built to withstand harsh environments, this pushbutton boasts an IP66 degree of protection, ensuring resistance against dust and powerful water jets. It&amp;#39;s compliant with multiple standards and approvals including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 certifications—making it suitable for global applications.</p><p>The ambient temperature range from -30 to 70 degrees Celsius highlights its adaptability across diverse climates—perfect for Australia&amp;#39;s varying weather conditions. Connection via Faston terminals simplifies installation and maintenance tasks.</p><p>With a rated insulation voltage of 690 V and a rated impulse withstand voltage of 4 kV, this component ensures robust performance under high-voltage scenarios. The contact configuration of two normally open contacts (2NO) supports straightforward integration into control circuits.</p><p>The actuator type is extended with a diameter of 22 mm aligning with standard panel cutout sizes facilitating easy replacement or upgrades in existing setups. Equipped with a white BA9S lamp type, it provides clear indication during operation.</p><p>Designed for momentary function use cases like start/stop operations or emergency stops—the product includes essential components such as an operator unit contact block maintained accessories power supply (lamp block) and lamp itself—offering comprehensive functionality right out-of-the-box.</p><p>Constructed from durable metal bezel material ensures longevity even under mechanical stress common within mining construction heavy industry sectors where reliability cannot be compromised due safety concerns equipment downtime costs etcetera</p><p>This pushbutton switch serves mining construction heavy industry applications where durability operational efficiency paramount Its design incorporates light blocks powered by reliable power supplies ensuring consistent illumination throughout usage lifecycle Whether upgrading current systems implementing new installations this product stands ready meet your technical requirements head-on</p>
