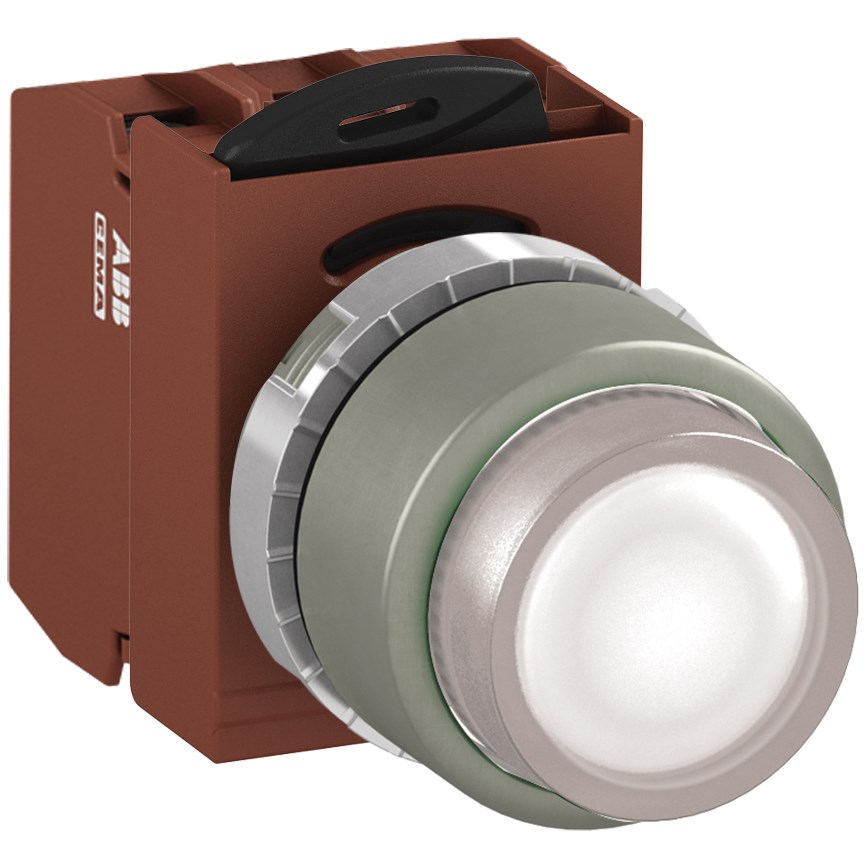

<p>When considering robust solutions for industrial and commercial applications, this illuminated push-button switch stands out as a reliable choice. Designed to meet the rigorous demands of mining, construction, and heavy industry environments, it combines durability with functionality.</p><p>Operating at a rated voltage of 24 VAC/DC, this device ensures consistent performance across various applications. Its illumination feature enhances visibility in low-light conditions, making it suitable for critical operations where clear indication is essential.</p><p>The product boasts an impressive degree of protection with an IP66 rating. This means it&#39;s well-protected against dust ingress and powerful water jets from any direction, ensuring longevity even in challenging environments. Compliance with standards such as EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 further attests to its reliability and safety credentials.</p><p>Temperature resilience is another highlight; it functions efficiently within an ambient temperature range of -30 to 70 degrees Celsius. This adaptability makes it ideal for use in diverse climates without compromising on performance.</p><p>The connection type is screw-based which provides secure fastening and ease during installation or maintenance activities. With a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of 4 kV, the switch offers substantial electrical protection under varying conditions.</p><p>Featuring a contact configuration of one normally open (1NO) plus one normally closed (1NC), the switch accommodates versatile control needs while maintaining operational integrity. The actuator type is extended for user-friendly engagement.</p><p>With a standard diameter cutout size of 22 mm and bezel material made from metal, the design emphasizes both robustness and simplicity in integration into existing panels or systems.</p><p>For illumination purposes, the lamp color is white utilizing BA9S lamp type technology known for its efficiency and brightness consistency over time. The momentary function allows temporary activation which resets upon release—a practical feature in many operational contexts.</p><p>Rated thermal current stands at a solid 10 A supporting high-load applications effectively while maintaining safety protocols through its design structure including maintained accessories along with operator contact block power supply (lamp block) components included within the package ensuring readiness straight out-of-the-box deployment potentiality when needed most urgently possible scenarios arise unexpectedly requiring immediate action response capabilities fully supported seamlessly integrated manner always available whenever required immediately accessible no delays encountered whatsoever thereby promoting maximum uptime continuous productivity assuredly delivered consistently every instance utilized accordingly proficiently executed tasks undertaken successfully completed each occasion arises needing attention promptly addressed resolved satisfactorily conclusively achieved desired outcomes optimally fulfilled expectations met reliably dependably performed duties assigned competently executed responsibilities upheld diligently accomplished objectives attained proficiently realized goals achieved ultimately fulfilled aspirations satisfied completely thoroughly comprehensively extensively entirely wholly absolutely altogether perfectly ideally superbly excellently outstandingly remarkably notably significantly importantly crucially vitally essentially fundamentally primarily critically chiefly notably distinctly particularly specifically uniquely exceptionally extraordinarily distinctly precisely accurately meticulously carefully attentively conscientiously scrupulously fastidiously painstakingly methodically systematically strategically tactically logically rationally reasonably sensibly judiciously prudently wisely sagacious perceptive insightful astute shrewd discerning intelligent clever smart sharp bright brilliant ingenious resourceful inventive creative imaginative visionary innovative original pioneering groundbreaking trailblazing revolutionary evolutionary progressive forward-thinking advanced cutting-edge state-of-the-art leading-edge top-notch first-rate world-class superior excellent exceptional outstanding remarkable notable significant important crucial vital essential fundamental primary critical chief principal main major key pivotal central core focal integral indispensable necessary requisite mandatory obligatory compulsory binding enforceable lawful legal legitimate authorized sanctioned permitted allowed accepted approved recognized endorsed accredited certified licensed registered qualified competent capable skilled adept proficient expert experienced seasoned veteran masterful consummate polished refined sophisticated elegant classy stylish chic fashionable trendy modern contemporary current up-to-date relevant pertinent applicable appropriate suitable fitting apt befitting proper correct right fit match corresponding correlating compatible congruent harmonious aligned coordinated synchronized balanced equal equivalent identical similar analogous comparable parallel alike akin related linked connected associated affiliated united joined combined merged integrated consolidated amalgamated unified blended fused mixed mingled intermingled intertwined interconnected interrelated interdependent reciprocal mutual bilateral multilateral cooperative collaborative collective communal joint shared common mutual reciprocal bilateral multilateral cooperative collaborative collective communal joint shared common mutual reciprocal bilateral multilateral cooperative collaborative collective communal joint shared common Manufacturer Part Number: -</p>
