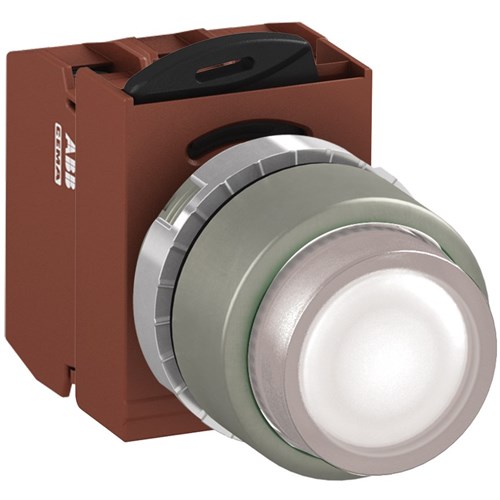

ABB MMPIEWOSP220 Illuminated Pushbutton Kit 22mm Extended Momentary White 24VAC/DC 2NO Screw Power Supply

Product Code: MMPIEWOSP220

  • Suited for mining and heavy industry
  • Operates at 24 VAC/DC with IP66 protection
  • Momentary function with extended actuator
  • White BA9S lamp, illuminated design
  • Metal bezel and 22 mm cutout size
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Extended
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour White
Connection Type Screw
Contact Configuration 2NO
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour White
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>When it comes to selecting the right components for your industrial or commercial projects, understanding the specifications and suitability of each product is crucial. This particular unit is engineered to meet the rigorous demands of mining, construction, and heavy industry applications.</p><p>This device operates at a rated voltage of 24 VAC/DC, making it versatile for various power systems. Its illumination feature ensures visibility in low-light environments, while its IP66 degree of protection guarantees resilience against dust and powerful water jets. These attributes make it an ideal choice for harsh conditions commonly found in industrial settings.</p><p>Built to comply with several standards and approvals including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 certifications, this product adheres to stringent safety and performance requirements.</p><p>The ambient temperature range from -30 to 70 degrees Celsius further enhances its reliability across diverse environmental conditions. The connection type utilizes screw terminals which are known for their secure attachment and ease of installation.</p><p>With a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of 4 kV, this unit offers robust electrical endurance suitable for demanding applications. The contact configuration features two normally open (2NO) contacts providing straightforward integration into control circuits.</p><p>An extended actuator type paired with a compact diameter of just 22 mm ensures efficient operation without occupying excessive space on panels or consoles. The lamp color is white which can be easily identified in various lighting conditions; meanwhile, the BA9S lamp type offers reliable performance over time.</p><p>Functionally designed as momentary action equipment means it returns automatically after activation—ideal for tasks requiring short-term engagement such as start/stop operations within machinery processes.</p><p>Rated thermal current stands at an impressive 10 A allowing substantial current flow without overheating risks under normal operating circumstances. Constructed using metal bezel material provides durability against physical impacts ensuring longevity even in tough environments.</p><p>The cutout size matches its diameter at precisely 22 mm facilitating seamless installation into standard panel cutouts common within industry practices today.</p><p>Included within this package are essential components: operator mechanism itself along with contact block maintained accessories plus power supply (lamp block) complete with lamp—offering everything needed right out-of-the-box saving both time effort during setup phases!</p><p>In summary whether you&amp;#39;re managing complex systems amidst challenging terrains or simply require dependable parts capable handling daily operational pressures rest assured knowing every aspect has been meticulously crafted deliver optimal results consistently across board!</p>
