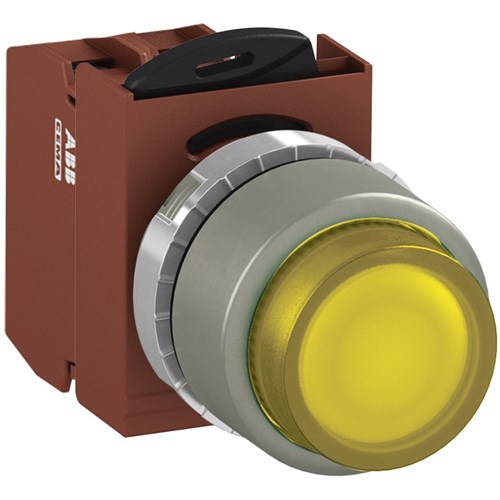

ABB MMPIEYOFP101 Illuminated Pushbutton Kit 22mm Extended Momentary Yellow 12VAC/DC 1NC Faston Power Supply

Product Code: MMPIEYOFP101

  • 12 VAC/DC illuminated with IP66 protection
  • Operates in -30 to 70°C environments
  • Faston connection for easy setup
  • Suitable for mining, construction use
  • Yellow BA9S lamp, momentary function
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Extended
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour Yellow
Connection Type Faston
Contact Configuration 1NC
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour Yellow
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 12 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>For professionals in the mining, construction, and heavy industry sectors seeking reliable components for their operations, this robust illuminated switch offers a dependable solution tailored to demanding environments. With a rated voltage of 12 VAC/DC and an IP66 degree of protection, this switch is engineered to withstand harsh conditions while providing consistent performance.</p><p>The switch adheres to stringent standards and approvals including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 certifications. These ensure that the product meets high safety and operational benchmarks required in industrial settings.</p><p>Designed with practicality in mind, the switch operates effectively across a broad ambient temperature range from -30&amp;#176;C to +70&amp;#176;C. This makes it suitable for diverse climates and challenging environments often encountered in heavy-duty applications.</p><p>Installation is straightforward thanks to its Faston connection type. The device features a rated insulation voltage of up to 690 V along with a rated impulse withstand voltage of 4 kV, ensuring robust electrical integrity even under sudden surges or spikes.</p><p>The contact configuration is designed as Normally Closed (1NC), which provides simplicity in control circuits typically used for safety functions or emergency stops. Its actuator type is extended for ease of use while wearing gloves or operating machinery.</p><p>With a diameter cutout size of 22 mm and matching bezel material crafted from durable metal, this component fits seamlessly into standard panels without compromising structural integrity. The lamp color is yellow—a universal indicator for caution—enhanced by its BA9S lamp type known for reliability and efficiency.</p><p>Functionality is momentary; thus it returns automatically to its default position once released—an essential feature where temporary activation is needed without latching on permanently.</p><p>Included within this comprehensive package are all necessary components: the operator itself alongside the contact block maintained accessories power supply (lamp block) and lamp ensuring immediate readiness upon installation without need for additional purchases.</p><p>In summary whether you&amp;#39;re involved in setting up new systems or maintaining existing ones this illuminated switch provides both reliability and compliance with industry standards making it an excellent choice for those who prioritize performance durability and safety within their technical requirements.</p>
