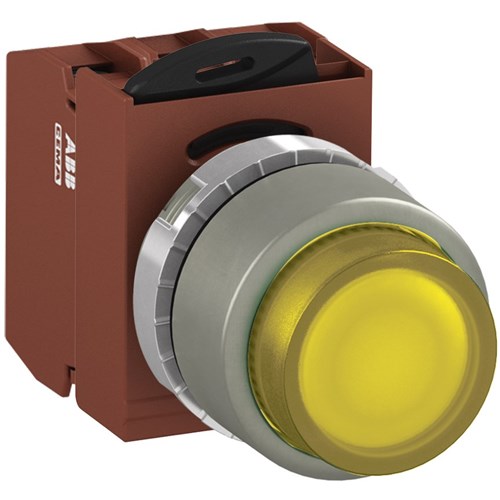

ABB MMPIEYOSP402 Illuminated Pushbutton Kit 22mm Extended Momentary Yellow 230VAC/DC 2NC Screw Power Supply

Product Code: MMPIEYOSP402

  • Illuminated with yellow BA9S lamp
  • IP66 protection for harsh environments
  • Operates in -30 to 70°C temperature range
  • Suitable for mining and heavy industry use
  • 22 mm cutout with metal bezel
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Extended
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour Yellow
Connection Type Screw
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour Yellow
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>When selecting a component for heavy-duty applications such as mining, construction, or industrial environments, reliability and compliance with standards are paramount. This illuminated actuator is designed to meet these rigorous demands with precision and durability.</p><p>Operating at a rated voltage of 230 VAC/DC, this device ensures consistent performance under various electrical conditions. The illumination feature, highlighted by a yellow BA9S lamp, provides clear visibility even in low-light settings—a crucial aspect for safety and efficiency in demanding work environments.</p><p>The actuator boasts an impressive degree of protection with an IP66 rating. This ensures that it is dust-tight and protected against powerful water jets, making it suitable for harsh outdoor conditions or dusty industrial sites. It adheres to multiple international standards including EN IEC 60947-5-1 and UL 508, providing peace of mind regarding its quality and safety credentials.</p><p>Designed to function within ambient temperatures ranging from -30 to 70 degrees Celsius, this product can withstand extreme weather variations without compromising its operational integrity. Its robust metal bezel material further enhances its resilience against physical impacts.</p><p>The connection type is screw-based, offering secure installation while the extended actuator type allows easy operation. With a contact configuration of 2NC (normally closed), it suits applications requiring reliable circuit interruption when not actuated.</p><p>Its rated insulation voltage stands at an impressive 690 V with a rated impulse withstand voltage of 4 kV—indicative of its ability to handle high-voltage spikes effectively. The momentary function ensures that the switch returns to its default position once released—a vital feature for transient operations in industrial controls.</p><p>With a diameter and cutout size both set at 22 mm, compatibility with standard panel designs is assured. The light blocks type includes a power supply which simplifies integration into existing systems by powering the lamp directly through the operator assembly included in the package.</p><p>This product comes complete with maintained accessories ensuring long-term usability without frequent replacements or maintenance interventions—an essential consideration when minimizing downtime in critical operations is necessary.</p><p>In summary, this illuminated actuator offers robust construction combined with flexible functionality tailored specifically for heavy industry demands where reliability cannot be compromised.</p>
