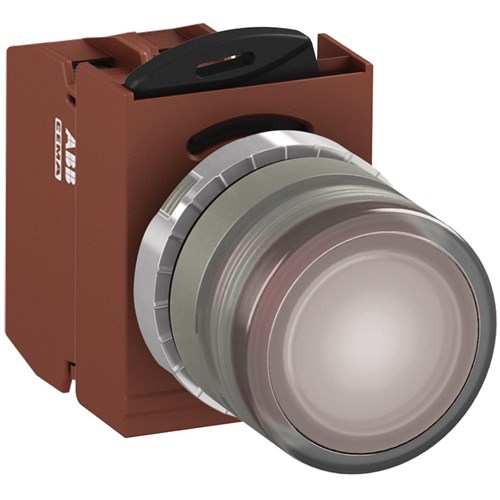

ABB MMPIFCOSL310 Illuminated Pushbutton Kit 22mm Flush Momentary Clear 110VAC/DC 1NO Screw LED Block

Product Code: MMPIFCOSL310

  • IP66 rated for robust protection
  • Operates at 110 VAC/DC with LED illumination
  • Suitable for extreme temperatures from -30 to 70°C
  • Features a flush actuator with a clear LED lamp
  • Ideal for mining, construction, and heavy industry
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour Clear
Connection Type Screw
Contact Configuration 1NO
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, LED Block and LED
Lamp Colour Clear
Lamp Type LED
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>When it comes to selecting reliable components for industrial applications, understanding the technical specifications is crucial. This particular product offers a robust solution with its comprehensive features tailored for demanding environments such as mining, construction, and heavy industry.</p><p>The unit operates at a versatile rated voltage of 110 VAC/DC, making it suitable for various power systems. Its illumination feature ensures visibility in low-light conditions, thanks to the clear LED lamp type that provides consistent lighting. The flush actuator design maintains a sleek profile while allowing easy operation.</p><p>Engineered for durability, this product boasts an IP66 degree of protection, ensuring excellent resistance against dust and powerful water jets. This makes it ideal for harsh outdoor or industrial settings where equipment reliability is paramount.</p><p>In terms of standards and approvals, this component adheres to key regulations including EN IEC 60947-5-1 and UL 508 among others. These certifications confirm its compliance with safety and performance benchmarks required in both local and international markets.</p><p>The ambient temperature range from -30 to 70 degrees Celsius indicates that this device can function effectively in extreme climates without compromising performance or safety. Furthermore, the screw connection type facilitates secure installation and maintenance.</p><p>With a rated insulation voltage of 690 V and a rated impulse withstand voltage of 4 kV, this product is designed to handle high-voltage scenarios safely. The contact configuration consists of one normally open (1NO) contact which suits applications requiring momentary functionality—perfect for tasks needing temporary activation like signaling or control operations.</p><p>A diameter and cutout size of 22 mm ensure compatibility with standard panel designs while maintaining compactness. The metal bezel material adds an extra layer of robustness against physical impacts or environmental stressors commonly encountered in heavy-duty industries.</p><p>Additionally, the light blocks are based on LED technology which not only enhances energy efficiency but also extends operational life compared to traditional lighting solutions. Included with the package are essential components such as the operator, contact block, maintained accessories along with the LED block itself—offering a complete setup ready for integration into existing systems.</p><p>Overall, this product stands out as an efficient choice when considering factors like durability under tough conditions combined with straightforward installation processes—all critical elements when working within sectors that demand high-performance equipment continuously.</p>
