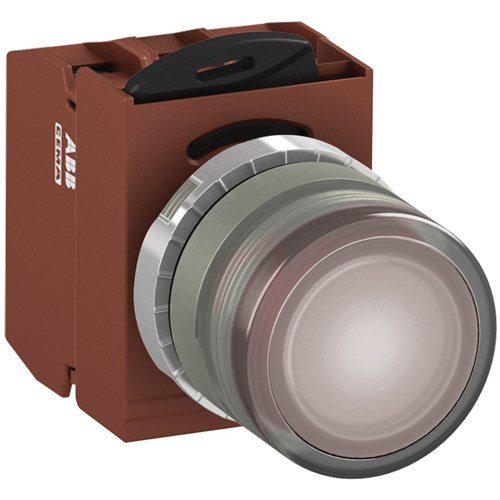

ABB MMPIFCOSP420 Illuminated Pushbutton Kit 22mm Flush Momentary Clear 230VAC/DC 2NO Screw Power Supply

Product Code: MMPIFCOSP420

  • 230 VAC/DC illuminated actuator with IP66 protection
  • Operates in temps from -30 to 70°C
  • Screw connection, 2NO contact configuration
  • Durable metal bezel, fits 22 mm cutouts
  • Suitable for mining and heavy industry use
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour Clear
Connection Type Screw
Contact Configuration 2NO
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour Clear
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>For professionals in the mining, construction, and heavy industry sectors, selecting the right components is crucial for maintaining operational efficiency. The illuminated pushbutton switch described here offers robust features suitable for demanding environments.</p><p>Operating at a rated voltage of 230 VAC/DC, this device ensures reliable performance across various applications. Its illumination feature enhances visibility and usability in low-light conditions, making it ideal for industrial settings where precision is key.</p><p>With a degree of protection rated at IP66, this pushbutton switch is designed to withstand harsh conditions such as dust and powerful water jets. This makes it particularly suitable for outdoor or rugged environments often encountered in industrial operations.</p><p>The product adheres to multiple standards and approvals including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No.14 certifications. These approvals underscore its reliability and compliance with international safety standards.</p><p>Designed to function effectively within an ambient temperature range from -30&amp;#176;C to 70&amp;#176;C, this switch can operate efficiently under extreme temperatures typical in many industrial applications. The screw connection type facilitates secure installation while ensuring electrical stability.</p><p>The rated insulation voltage stands at an impressive 690 V with a contact configuration of 2NO (two normally open contacts), providing flexibility in circuit design. Additionally, the rated impulse withstand voltage of 4 kV enhances its durability against transient voltages.</p><p>Featuring a flush actuator type with a diameter of 22 mm and cutout size also at 22 mm, it integrates seamlessly into control panels without requiring extensive modifications. The clear lamp color coupled with BA9S lamp type ensures optimal illumination while maintaining energy efficiency.</p><p>Functioning as a momentary switch with a rated thermal current of up to 10 A allows for efficient operation without overheating concerns during transient loads or frequent use cycles.</p><p>Constructed with metal bezel material adds robustness while contributing to the aesthetic appeal required in high-end installations or visible control panels. The light blocks are powered by an internal power supply ensuring consistent lighting performance throughout its lifespan.</p><p>This comprehensive package includes an operator contact block maintained accessories power supply (lamp block) along with the lamp itself offering convenience during installation and maintenance phases eliminating the need for sourcing additional components separately making it cost-effective over time especially when considering total cost ownership factors prevalent among procurement decisions today across industries globally.</p>
