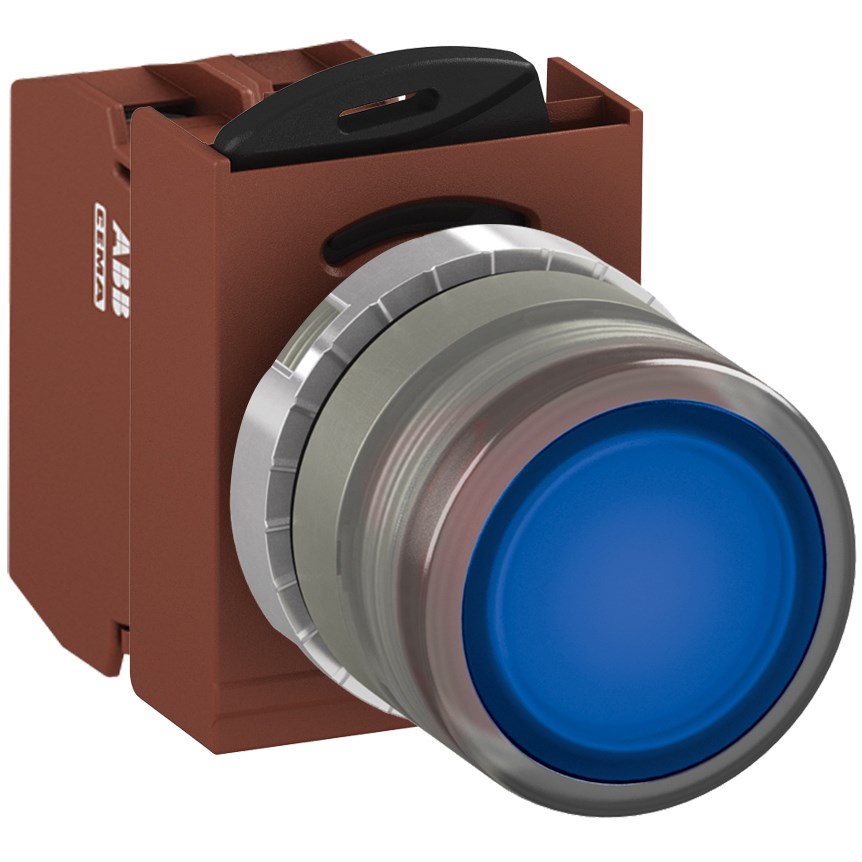

ABB MMPIFLASL401 Illuminated Pushbutton Kit 22mm Flush Maintained Blue 230VAC/DC 1NC Screw LED Block

Product Code: MMPIFLASL401

  • 230V illuminated switch with IP66 protection
  • Operates in -30 to 70°C environments
  • Screw connection, flush actuator design
  • Blue LED lamp with maintained function
  • Suitable for mining and heavy industry use
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour Blue
Connection Type Screw
Contact Configuration 1NC
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Maintained
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, LED Block and LED
Lamp Colour Blue
Lamp Type LED
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>When selecting industrial components, reliability and durability are paramount. The product in question is a robust choice for those working within mining, construction, and heavy industry sectors. Built to withstand challenging environments, this device offers a blend of functionality and resilience.</p><p>Operating at a rated voltage of 230 VAC/DC, the product ensures reliable performance across various applications. The illumination feature is enhanced by an LED light block with a blue lamp color, providing clear visibility even in low-light conditions. This illumination is not just practical but also energy-efficient due to the use of LEDs.</p><p>With an actuator type that is flush and a diameter of 22 mm, this component fits seamlessly into standard cutouts without requiring additional modifications. Its metal bezel material adds an extra layer of durability while maintaining aesthetic appeal.</p><p>The product boasts an impressive degree of protection with its IP66 rating, ensuring it remains dust-tight and protected against powerful water jets—ideal for harsh industrial settings. Compliance with standards such as EN IEC 60947-5-1 and UL 508 further attests to its quality and safety credentials.</p><p>A key feature is the maintained function which allows for consistent operation once activated until manually turned off. This can be particularly useful in scenarios where continuous operation is necessary without constant supervision.</p><p>In terms of electrical specifications, it has a rated insulation voltage of 690 V and can handle a rated thermal current up to 10 A. The contact configuration features one normally closed (1NC) contact which provides straightforward integration into existing systems requiring simple on/off control mechanisms.</p><p>The ambient temperature range from -30 to 70 degrees Celsius highlights its suitability for extreme environments often encountered in heavy industries. Connection via screw terminals ensures secure installation while facilitating ease of maintenance or replacement if necessary.</p><p>Lastly, the inclusion of essential components like the operator, contact block, maintained accessories along with the LED block makes this product ready-to-use upon delivery—streamlining installation processes significantly.</p><p>This combination of features makes it not only versatile but also reliable under demanding conditions—an ideal choice for professionals seeking dependable solutions tailored to their technical requirements in industrial settings.</p>
