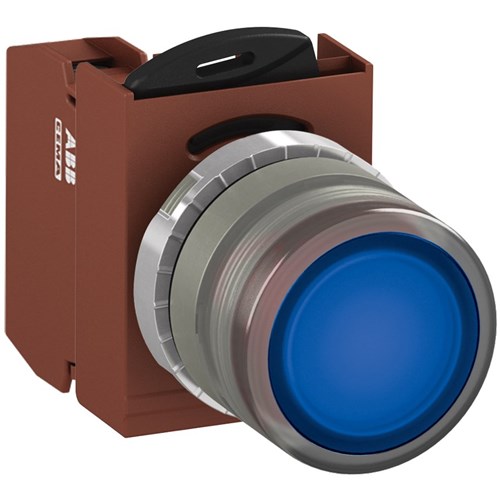

ABB MMPIFLOSP001 Illuminated Pushbutton Kit 22mm Flush Momentary Blue 6VAC/DC 1NC Screw Power Supply

Product Code: MMPIFLOSP001

  • IP66 protection, suitable for harsh environments
  • Operates in -30 to 70°C ambient temp
  • Screw connection for secure installation
  • Blue illuminated flush actuator, 22mm dia.
  • Includes operator and maintained accessories
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour Blue
Connection Type Screw
Contact Configuration 1NC
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour Blue
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 6 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>When selecting components for industrial applications, precision and reliability are key. This illuminated pushbutton is designed to meet the stringent demands of mining, construction, and heavy industry sectors. Its robust build and reliable performance make it an integral part of any control system.</p><p>Operating at a rated voltage of 6 VAC/DC, this device ensures efficient functionality with minimal power consumption. The illumination feature, characterized by a blue BA9S lamp type, enhances visibility in low-light environments—crucial for maintaining operational safety and efficiency.</p><p>With an IP66 degree of protection, this pushbutton is well-suited for harsh conditions, offering excellent resistance against dust ingress and powerful water jets from any direction. It adheres to several standards including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 certifications—ensuring compliance with international safety requirements.</p><p>The ambient temperature range extends from -30 to 70 degrees Celsius, allowing it to function reliably across diverse climatic conditions without compromising performance or durability.</p><p>The connection type is screw-based which provides secure electrical connections that are easy to install or replace when necessary. With a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of 4 kV, this product offers high levels of electrical safety suitable for demanding environments.</p><p>Its contact configuration includes one normally closed (1NC) contact providing straightforward integration into existing systems while maintaining system integrity during operations.</p><p>Featuring a flush actuator type with a diameter of 22 mm and matching cutout size ensures compatibility with standard panels making installation seamless. The momentary function allows temporary activation which can be critical in emergency stop functions or other control tasks requiring quick response times.</p><p>Constructed with metal bezel material adds durability ensuring long-lasting use even under mechanical stress common within industrial settings. Rated thermal current capacity stands at an impressive 10 A supporting various load requirements effectively without overheating risks involved typically associated with lower-rated alternatives available on market today</p><p>Included components such as operator contact block maintained accessories power supply (lamp block) provide comprehensive solutions bundled together simplifying procurement processes reducing separate purchases needed otherwise enhancing user convenience overall</p><p>This pushbutton exemplifies practical engineering excellence tailored specifically towards meeting needs found within rugged application domains where reliability endurance paramount considerations</p>
