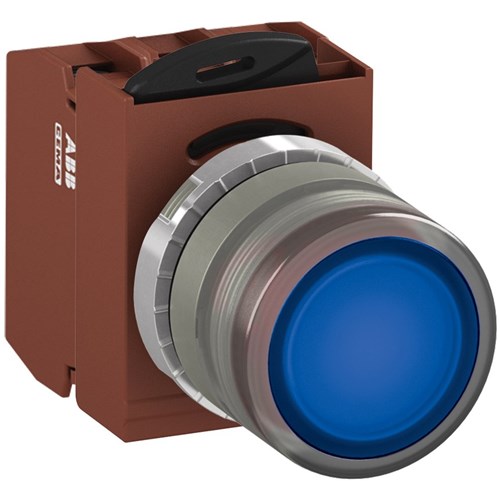

ABB MMPIFLOSP002 Illuminated Pushbutton Kit 22mm Flush Momentary Blue 6VAC/DC 2NC Screw Power Supply

Product Code: MMPIFLOSP002

  • Rated for 6 VAC/DC with IP66 protection
  • Operates in -30 to 70°C ambient temps
  • Features a flush actuator with blue illumination
  • Includes operator, contact block, and lamp block
  • Suitable for mining and heavy industry use
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour Blue
Connection Type Screw
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour Blue
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 6 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>When it comes to selecting robust components for industrial applications, having a clear understanding of the technical specifications is crucial. This product offers a reliable solution with its impressive array of features designed to meet demanding requirements in mining, construction, and heavy industry environments.</p><p>Operating on a rated voltage of 6 VAC/DC, this illuminated device ensures visibility and functionality even in challenging conditions. Its blue lamp, utilizing the BA9S type, provides clear indication while maintaining energy efficiency. The flush actuator design integrates seamlessly into control panels without protruding elements that could be accidentally engaged or damaged.</p><p>Engineered with durability in mind, the device boasts an IP66 degree of protection. This rating signifies excellent resistance against dust ingress and powerful water jets from any direction—ideal for harsh industrial settings where exposure to such elements is common. Compliance with standards like EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 further assures users of its safety and reliability across various international markets.</p><p>The ambient temperature range from -30 to 70 degrees Celsius highlights its capability to perform under extreme temperatures—a vital consideration for outdoor or high-temperature installations often encountered in Australia’s diverse climate zones.</p><p>With a screw connection type facilitating secure electrical connections and ease of installation or maintenance work, the device also supports a rated insulation voltage up to 690 V along with a rated impulse withstand voltage of 4 kV—features that underscore its suitability for high-power applications.</p><p>The contact configuration includes two normally closed (NC) contacts which provide fail-safe operation by breaking the circuit upon actuation unless manually reset—critical in ensuring operational safety during unexpected events or emergencies.</p><p>Supporting up to a rated thermal current of 10 A ensures compatibility with various loads typically found within industrial circuits while maintaining efficient performance over time. The metal bezel material enhances durability against mechanical impacts or corrosive environments commonly encountered on job sites.</p><p>Designed for straightforward integration into existing systems or new projects alike—the cutout size matches standard dimensions at 22 mm diameter ensuring compatibility across different setups without requiring extensive modifications.</p><p>Included components such as the operator unit itself along with contact blocks maintained accessories power supply (lamp block) and lamp make it convenient for installers providing an all-in-one package ready out-of-the-box reducing downtime associated with sourcing individual parts separately thus optimizing project timelines efficiently.</p>
