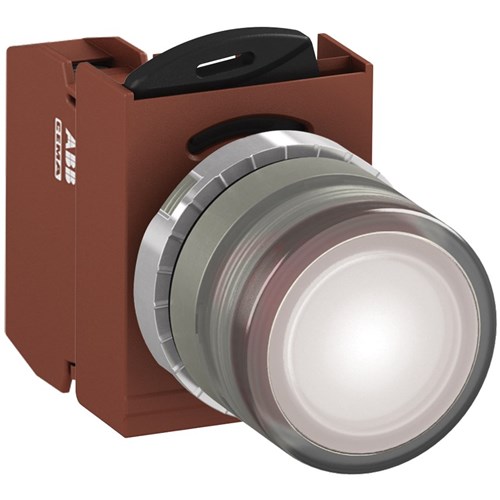

ABB MMPIFWOFP101 Illuminated Pushbutton Kit 22mm Flush Momentary White 12VAC/DC 1NC Faston Power Supply

Product Code: MMPIFWOFP101

  • 12 VAC/DC illuminated pushbutton
  • IP66 protection for harsh environments
  • Operates in -30 to 70°C range
  • Durable metal bezel with flush actuator
  • Ideal for mining and heavy industry use
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour White
Connection Type Faston
Contact Configuration 1NC
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour White
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 12 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>When selecting components for industrial and commercial applications, it&amp;#39;s essential to consider products that offer reliability and meet stringent standards. This product is designed with these principles in mind, making it a suitable choice for demanding environments such as mining, construction, and heavy industry.</p><p>At its core, this device operates at a rated voltage of 12 VAC/DC and features illumination for enhanced visibility. The degree of protection is IP66, ensuring robust defense against dust and powerful jets of water. It&amp;#39;s built to comply with several international standards including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as North American standards UL 508 and CSA C22.2 No. 14.</p><p>The unit can withstand ambient temperatures ranging from -30 to +70 degrees Celsius which offers great versatility in various environmental conditions. Its connection type is Faston which provides a quick and secure method of installation or replacement.</p><p>For insulation purposes, the device has a rated insulation voltage of up to 690 V while the rated impulse withstand voltage stands at an impressive 4 kV—both critical metrics when considering electrical safety.</p><p>The actuator type is flush with a diameter of 22 mm making it compact yet functional. This product&amp;#39;s lamp color is white utilizing the BA9S type lamp known for its efficiency and reliability in industrial settings.</p><p>Functionality-wise, it operates momentarily—a feature often preferred in control systems where temporary activation is required without maintaining the circuit permanently closed or open. It also supports a contact configuration of one normally closed (1NC) which ensures safe operation by breaking the circuit under specific conditions.</p><p>The rated thermal current capacity reaches up to 10 A allowing it to handle significant electrical loads without compromising performance or safety. Constructed with metal bezel material adds durability especially crucial when used in harsh environments prone to wear and tear.</p><p>Installation requires a cutout size matching its diameter at precisely 22 mm ensuring seamless integration into existing panels or systems without additional modifications needed.</p><p>Included within this comprehensive package are all necessary components: operator contact block maintained accessories power supply (lamp block) along with the lamp itself providing everything needed for straightforward setup right out-of-the-box saving time during deployment phases on-site operations</p><p>Overall this product stands out due its combination technical specifications adherence high-quality manufacturing processes extensive approvals certifications making dependable choice those working sectors requiring reliable consistent equipment support their daily operational needs</p>
