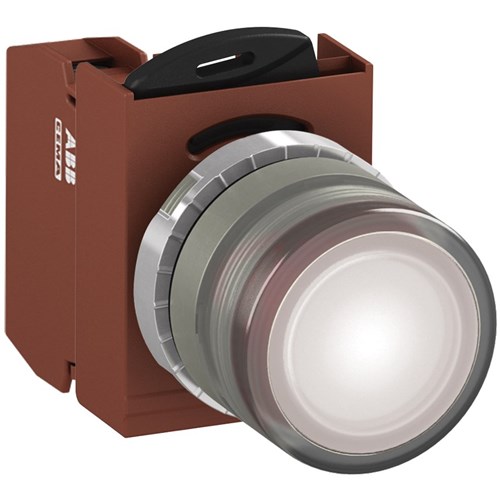

ABB MMPIFWOFP210 Illuminated Pushbutton Kit 22mm Flush Momentary White 24VAC/DC 1NO Faston Power Supply

Product Code: MMPIFWOFP210

  • Rated for 24 VAC/DC with IP66 protection
  • Operates in -30 to 70°C environments
  • Faston connection with 1NO contact config
  • Features a flush actuator, 22 mm diameter
  • Ideal for mining and heavy industry use
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour White
Connection Type Faston
Contact Configuration 1NO
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour White
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>When it comes to selecting reliable components for industrial and commercial applications, this illuminated pushbutton stands out with its robust design and comprehensive standards compliance. Engineered for demanding environments like mining, construction, and heavy industry, this product is built to endure tough conditions while maintaining optimal performance.</p><p>Operating at a rated voltage of 24 VAC/DC, this pushbutton ensures efficiency in energy consumption without compromising on functionality. The unit&amp;#39;s illumination feature is powered by a BA9S lamp in a crisp white color, offering clear visibility even in low-light settings, which is crucial for operators working around the clock.</p><p>With an IP66 degree of protection, the device is well-guarded against dust ingress and powerful water jets from any direction. This level of protection guarantees longevity and reliability in harsh environments where exposure to elements is inevitable. The flush actuator type provides a sleek appearance while ensuring ease of use.</p><p>The product complies with several key international standards including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as North American standards UL 508 and CSA C22.2 No. 14. These certifications underline the quality assurance embedded within its design and manufacturing processes.</p><p>Designed for versatility across various temperature ranges from -30&amp;#176;C to 70&amp;#176;C, it can withstand extreme weather conditions without faltering—a critical factor for outdoor or unregulated indoor environments typical in mining or construction sites.</p><p>The connection type utilizes Faston terminals for quick installation and maintenance—an essential feature when time efficiency can impact operational productivity significantly. Its rated insulation voltage of 690 V coupled with a rated impulse withstand voltage of 4 kV enhances safety by providing superior electrical resistance under stress conditions.</p><p>For user convenience, the product includes an operator interface along with maintained accessories such as contact blocks and power supply (lamp block). The momentary function allows precise control over operations which are vital in process-driven industries where timing can be everything.</p><p>Boasting a diameter of just 22 mm with matching cutout size requirements makes integration into existing panels straightforward without necessitating additional modifications—saving both time and resources during setup phases.</p><p>Constructed using durable metal bezel material adds another layer of resilience against physical impacts common within industrial settings; this complements its thermal current rating of up to 10 A making it suitable not only for standard operations but also those requiring higher load capacities intermittently throughout its lifecycle.</p>
